50 NC Tube Bending Machine Easy Cotroling / Mechanical Structure Profile Bending Machine

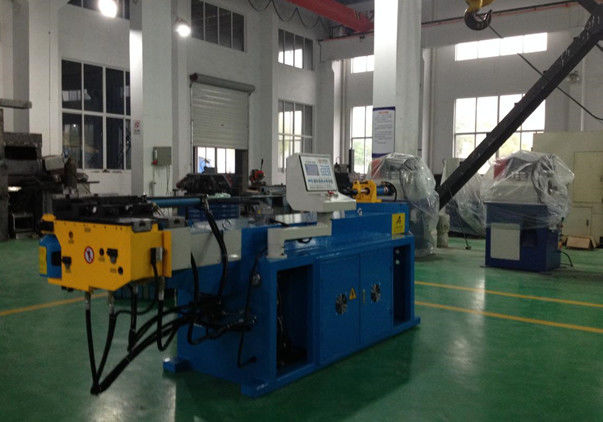

Large Image : 50 NC Tube Bending Machine Easy Cotroling / Mechanical Structure Profile Bending Machine

Product Details:

Place of Origin:	China
Brand Name:	Y&T
Certification:	ISO90001
Model Number:	50NC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	talking thtough E-mail
Packaging Details:	wooden
Delivery Time:	4 weeks
Payment Terms:	L/C, T/T
Supply Ability:	20 sets per months

Contact Now

Detailed Product Description

Material:	Aluminum, Iron, Stainless Steel	Color:	Blue And Yellow
Condition:	New	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Material / Metal Processed:	Stainless Steel	Automation:	Automatic
Name:	NC Tube Bending Machine
Highlight:	cnc tube bender , pipe bending equipment

50NC Tube Bending Machine

Technical Specification

Model	50NC
Taking the biggest bending radius 1.5D suitable for carbon steel tube material as example	￠50×2.5t
Max. effective distance of mandrel (a)	2000mm
Max. bending radius	250mm
Max. bending angle	185°
Oil pump	5.5KW
Bending drive system	gear and rack
Control system	PLC
Boost	Hydraulic
Cooling system	Water cooling
Protection system 1	Two-way bent arm switch
Protection system 2	Emergency stop
Max.curve no. of one tube	16
Max oil pressure	14Mpa
Weight	ca. 1500kg
L.W.H(cm)	355×100×125

50 NC Tube Bending Machine Easy Cotroling / Mechanical Structure Profile Bending Machine 0

Function

NC-control, hydraulic drive, bending angle preset.
New-designed camshaft is applied, which can eliminate wear clearance of gear and rack.
Forked-tail designed sliding block. Self-lubricating sliding components (oilless bearing).
Chinese display, HMI, manual/semi-automatic operation, movable pedal switch (start / emergency stop), two-way bent arm switch.
Hydraulic components are from famous suppliers.
Powerful cooling system for effective temperature control.
Easy operation, stable running, high efficiency, safe for operation.

Main Components

No.	Component	Supplier
1	Electrical components	Taian/Schneider
2	Bearing	NSK
3	Optoelectronic switch	Omron
4	Electromagnetic valve	7OCEAN(Taiwan)
5	Oil-pressure pump	HighTech(Taiwan)
6	throttle valve	7OCEAN(Taiwan)
7	sealing element	DingZing(Taiwan)
8	High-pressure oil pipe	Jiangsu Lianhui
9	Motor	Jiangu Guanshun
10	Transformer	JUCHE Group
