High Accuracy 15REX CNC Tube Bending Machine Both Left And Right Bending Type

We are old friends withYuantai Machinery Technology Co., Ltd I prefer them due to the good quality with best prcie.What's more,machine running stably and reliably since putting into use, with a zero fault rate.That's awsome

—— KAZUHIRO TSUZAWA

Although we bought machine only twice from the factory,their good configuration of machine and excellent after-sales service give me a deep impression.We'll keep good cooperation relationship in the long future.

—— Tamilmani M

As one of the familiar customer of Yuantai Machinery ,we feel lucky to know this supplier,the boss is very hospitable and he manages this factory so well .I can see the clean workshop and Neat arrangement of machines in this enterprise.

—— TAKAYOSHI TOMONAGA

I'm Online Chat Now

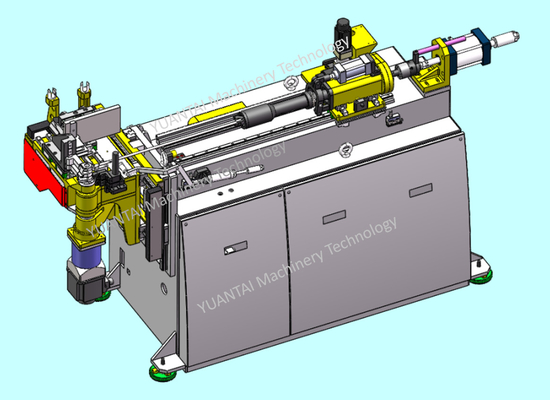

High Accuracy 15REX CNC Tube Bending Machine Both Left And Right Bending Type

High Accuracy 15REX CNC Tube Bending Machine Both Left And Right Bending Type
High Accuracy 15REX CNC Tube Bending Machine Both Left And Right Bending Type

Large Image :  High Accuracy 15REX CNC Tube Bending Machine Both Left And Right Bending Type

Product Details:
Place of Origin: China
Brand Name: YUANTAI
Certification: CE
Model Number: 15REX
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Standard export wooden case or pallet package
Detailed Product Description
Model Number: 15REX CNC/NC: CNC
Bending Type: Both Left And Right Bending Power: Electric Control
Max Speed: 180 Deg/s Solenoid Valve Voltage: 24V
Highlight:

cnc tube bender

,

automatic pipe bending machine

CNC 15REX Tube bender



Detailed Product Description

Tube bending machine has both left and right bending functions, for the individual tube bending machine will interfere with the workpiece, this machine can be completed in one time; CNC8 axis is servo independent controlled, all actions can be accurately adjusted in the touch screen, the accuracy is very high. The model has the function of setting mandrel pulling in advance and mandrel automatic lubrication system.



Max bending capacity (carbon steel as example) mm 15*1.5 20*1.5 38*1.5
Max bending Radius mm 70 150 200
Max Bending degree degree 190 195 195
clamping distance mm 40 100
material Feeding precision mm 0.1 0.1 0.1
Tube bending precision degree 0.1 0.1 0.1
Rotate precision deg/sec 0.1 0.1 0.1
Tube bending speed deg/s 180 120 180
Material Feeding speed mm/sec 1200 1200 1200
Rotate speed deg/s 360 220 360
Total power kw 7 11 15
Air resource Mpa 0.4-0.6 0.4-0.6 0.4-0.6
Power v/Hz 380/50 380/50 380/50
Solenoid valve voltage V 24 24 24



Specifications:

  • Bending part automatic
  • Equipped with hydraulic system--economical way
  • Stable performance
  • Easy operation
  • Cost-effictive machine



Main features of 15REX steel pipe bending machine:

  1. Operate by CNC control unit, imported electric and hydraulic elements.
  2. English showing and conversational operation.
  3. It can adjust speed in each bend and the bending precision is high.
  4. 16 groups of bending information can be stored. Multiple angles can be finished once.
  5. The foot switches with functions of automatic start, emergency stop and resuming.The safety is high.
  6. Delicate design of the bending head makes the bending space large.
  7. Suitable Materials: Steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others.



FAQ


1. How to choose the pipe/tube bending machine?



   You have to inform us following details:

-  Max. outside diameter

-  Wall thickness range

-  Bending radius (CLR)

-  The pipe material

-  The drawings if possible



2. Do you provide any training to make sure our user can operate the machine very well?



1) We will provide detailed video and instruction book for this machine;

2) We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!



3. How long warranty can you provide?



Our machine warranty is one year,and we use all the stable compoenents with long working life!

And we can also send our technician to do the after-sale service in client's factory!



4. What kind of solution you can offer to make sure your pipe bending machine can do our job?



1) We will help you confirm the model of our machine according to your offered pipe information.

2) Before you start the order for this big value machine,you can offer your workpiece drawing to us.

We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.

3) You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
