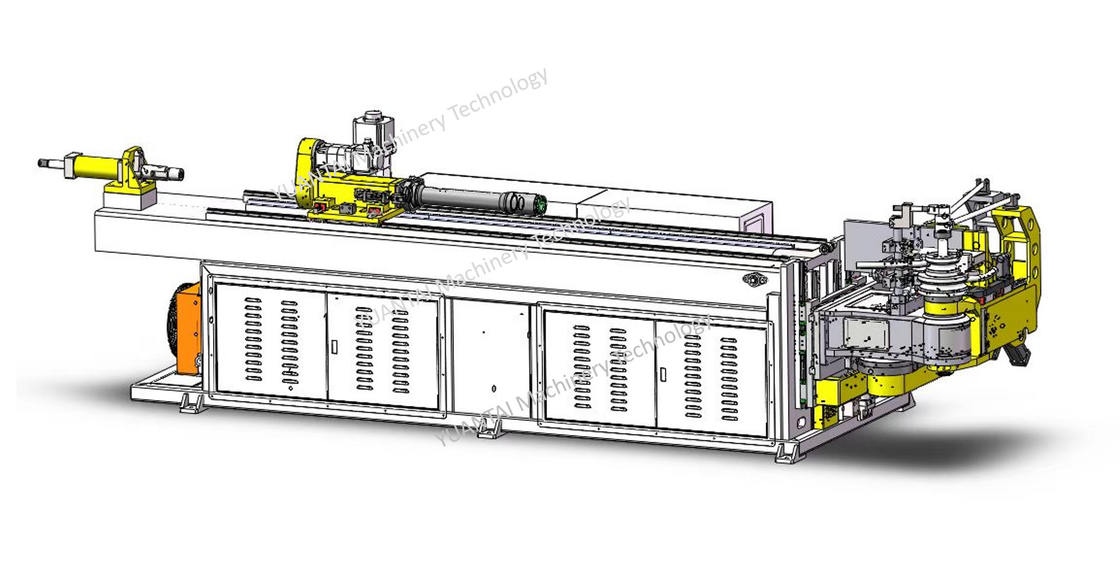

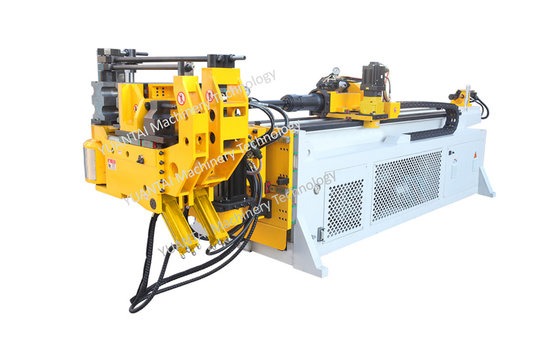

Electrical Servo CNC Tube Bender CNC65RES High Production Efficiency Low Noise

CNC65RES Tube bender

Advantages:

1. Low cost for operator training,high production effeciency and product uniformity.

2. Drived by electric servo motors.compared with hydraulic drive,it has higher stability and longer lifetime.It is unnecessary to worry about oil-leak or working temperature.

3. Gapless tube bending,with long-time high precision and processing efficiency,easy for operation.It has good compatibility.

4. Small in size,low noise level

5. Low running cost,with best cost performance for tube processing.

6. Widely used in small-diameter tube processing,for example tubes of air conditioner and oil tube for autos

Standard models:1~5 stacks,4~6 servo motors

Advanced motor:11 fully electric servo motors

Applications:

Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger

Features

1.The electric control system uses famous Japanese controllers,such as servo drivers,servo motors,positioning modules and CPUs manufatured by the Mitsubishi Corporation,and is high in performance and good stability.

2. The Mitsubishi ultra-large CPU can accommodate 400 groups of files for compiling,if necessary,the additional transmission software is bought and installed in the computer,and the documents and files are stored in the hard disk,so that the number of compiling groups is unlimitedly expanded.

3. Industrial-use computer type:the WINDOWS operating system is internally installed,and used together with the Mitsubishi servo system,besides the Mitsubishi servo driving,the convenient file management owned by the WINDOWS operating system is also provided;and the files can be storted in the hard disk or soft disk,so that the compiling groupnumber is unlimitedly expanded.

4. Based on the change of materials,each curve is set with a compensation value,a speed and a demoulding gap.

5. Each curve of one tube can be programmed with five action sequences and ten-stage speeds,so that the processing efficiency is improved,and the interference point is reduced.

6. Chinese/English language are switched to display on the touch screen,and customers can also purchase the machine installed with other languages

7. An automatic oil charging system is installed to reduce friction of the bending tube.It prolongs the lifetime of the core rod and improves the quality of the bended tube.

8. The machine can be connected with a printer so as to print the data displayed on the screen.

9. Communication interface can be installed as required,which can be connected to our company.Our engineer will provided remote service of real-time monitoring,data updating,failure checking and so on.

10. When the curves are tested,analytical actions can be used,the actions are modified by the careful observation of the interference points ,so that the efficiency is improved.
