Double Head HydraulicvNC Tube Bending Machine 170~1500mm Head Angle Range DB38

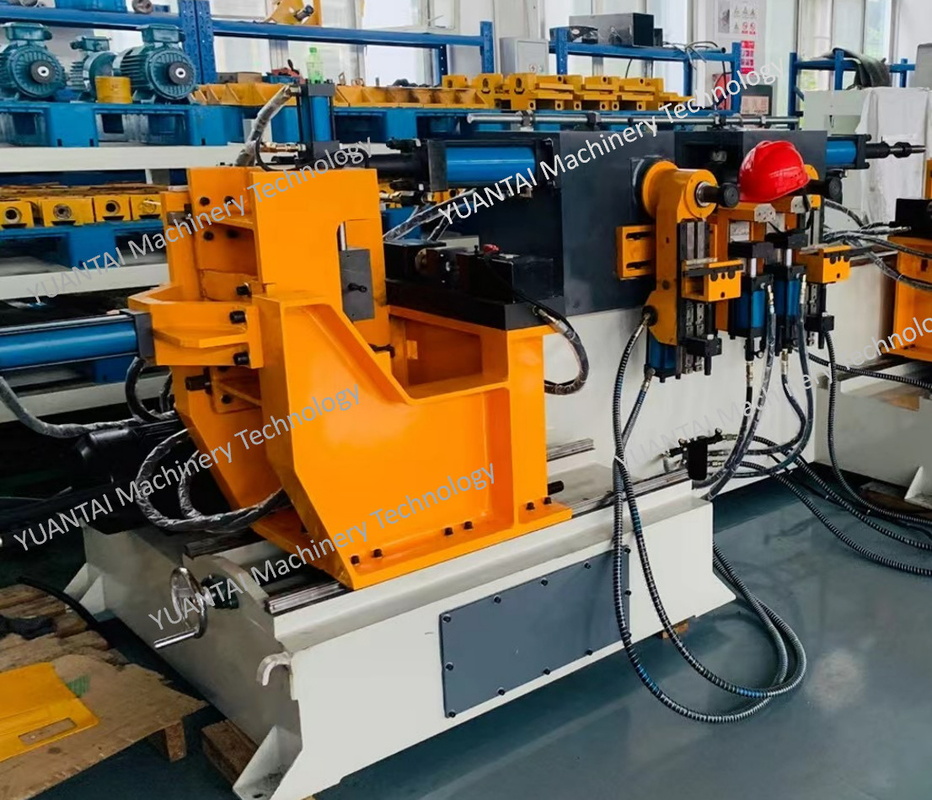

Large Image : Double Head HydraulicvNC Tube Bending Machine 170~1500mm Head Angle Range DB38

Product Details:

Place of Origin:	China
Brand Name:	YUANTAI
Certification:	CE
Model Number:	DB38

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiatable
Packaging Details:	Standard export wooden case or pallet package
Payment Terms:	T/T

Contact Now

Detailed Product Description

Module No.:	DB38	CNC/NC:	NC
Machine Head Angle Range:	170~1500mm	Max Bending Speed:	70°/sec
Power:	Hydraulic	Machine Type:	Pipe And Tube Bending Machine
Highlight:	cnc tube bender , pipe bending equipment

DB38 Double head hydraulic Tube bender

Uses the microcomputer control,operates easily ,performance stable,double-end curving synchronization shapes work piece of the bended pipe opens ,the angle is precise, Double-end curving angle may adjust from170~1500mm,but must consider the material-taking problem.May establish two ases different angles to be curving .

main technical parameter
max capacity	round tube/Iron tube( S=40kgf/mm ² )	Φ38.1x2.5t
Process quantity	Φ19.05	3~4
	Φ25	2~3
	Φ32	2~3
	Φ38	1~2
Characteristics	Bending radius /round tube	38~180mm
	Bending radius/square tube	38~160mm
	Bending degree	0~180°
	Bending speed	70°/sec
	Machine head angle range	170~1500mm

Machine characteristics

(1) Microcomputer control, easy to operate, easy to maintain；

(2) Divisible full cycle, half loop, selective operation

(3) Optional single or multiple simultaneous processing

Applications:

Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger

Our Company:

YUANTAI (Zhangjiagang) Machinary Technical Co., Ltd. is a good technology enterprise specializing in the manufacture and development of CNC tube bending machines. Many kinds of CNC tube bender developed by the company are in the leading level at home and abroad and even in the world, reaching the world synchronous leading level.
The company independently developed the full-electric CNC tube bending machine control system is in the industry leading level, and obtained dozens of patents. Advanced techniques such as three-dimensional dynamic information simulation design and finite element force analysis are used in mechanical design.

FAQ

1. How to choose the pipe/tube bending machine?

You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible

2. Do you provide any training to make sure our user can operate the machine very well?

1) We will provide detailed video and instruction book for this machine;
2) We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!

3. How long warranty can you provide?

Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
