Product Details:
Payment & Shipping Terms:
|
| Module No.: | DB38-90 | CNC/NC: | NC |
|---|---|---|---|
| Material / Metal Processed: | Metal Carbon Steel,iron,stainless Steel Pipes | Max Bending Speed: | 70°/sec |
| Power: | Hydraulic | Machine Type: | Pipe And Tube Bending Machine |
| Highlight: | cnc tube bender,pipe bending equipment |
||

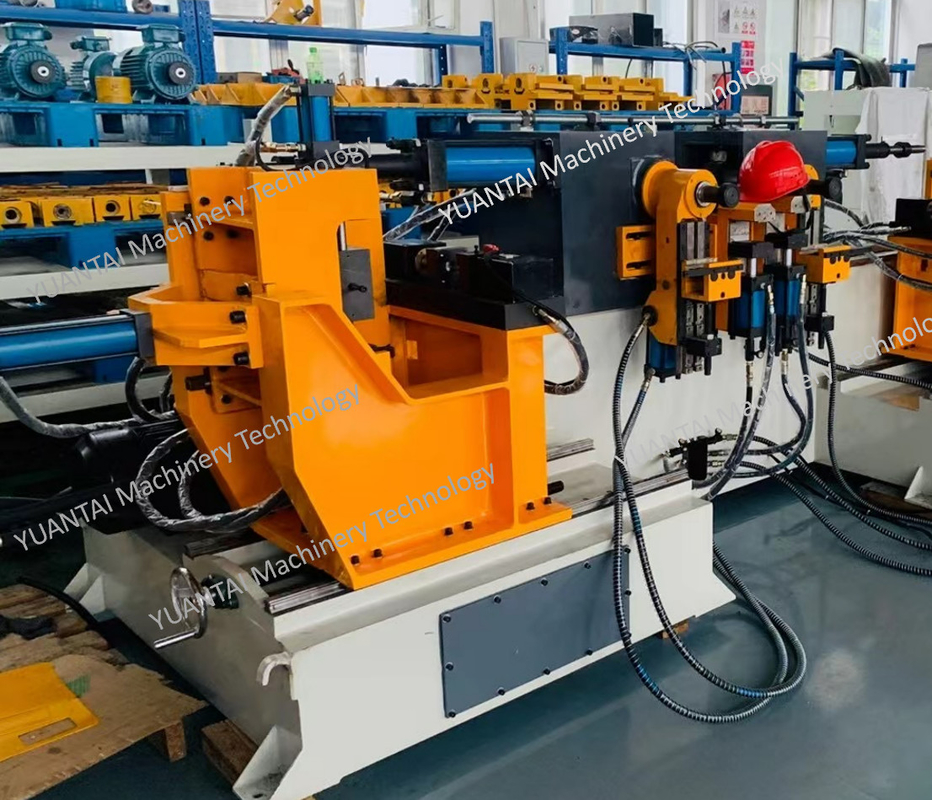

DB38-90 double head hydraulic Tube Bender
DB38-90 Double-head high speed tube bending machine, with NC control, makes your operation and program’s setting easy. Its special design makes it able to rotary 90 degree internally and externally, especially applies for the furniture processing.
| Main technical parameter | ||
| Max capacity | round tube/Iron tube | Φ38.1x2.5t |
| ( S=40kgf/mm ² ) | ||
| Process quantity | Φ19.05 | 3~4 |
| Φ25 | 2~3 | |
| Φ32 | 2~3 | |
| Φ38 | 1~2 | |
| Characteristics | Bending radius /round tube | 38~180mm |
| Bending radius/square tube | 38~160mm | |
| Bending degree | 0~180° | |
| Bending speed | 70°/sec | |
| Machine head angle range | 0~90° | |
| Machine head space(internal rotation) | 170~800mm | |
| Machine head space(external rotation) | 170~1500mm |
| Machine characteristics |
| (1) Microcomputer control, easy to operate, easy to maintain； |
| (2) Divisible full cycle, half loop, selective operation |
| (3) Optional single or multiple simultaneous processing |
| (4) Can do two dimensional space rotation, double-head 0-90 °adjustable. |
Applications:
Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger
Our Company:
Yuantai (Zhangjiagang) Machinery Technology Co., Ltd. is a leading technology enterprise specializing in the manufacture and development of CNC tube bending machines. Many kinds of CNC tube bender developed by the company are in the leading level at home and abroad and even in the world, reaching the world synchronous leading level.
The company independently developed the full-electric CNC tube bending machine control system is in the industry leading level, and obtained dozens of patents. Advanced techniques such as three-dimensional dynamic information simulation design and finite element force analysis are used in mechanical design.
FAQ
1. How to choose the pipe/tube bending machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2. Do you provide any training to make sure our user can operate the machine very well?
1) We will provide detailed video and instruction book for this machine;
2) We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
