| Automation: | Semi Automatic | Machine Type: | Pipe And Tube Bending Machine |
|---|---|---|---|
| Power: | Oil-electrical Hybrid Drive | Precision: | ±0.05 |
| Applications: | Fitness Equipment | CNC Control System: | PLC |
| Highlight: | cnc tube bender,pipe bending equipment |
||

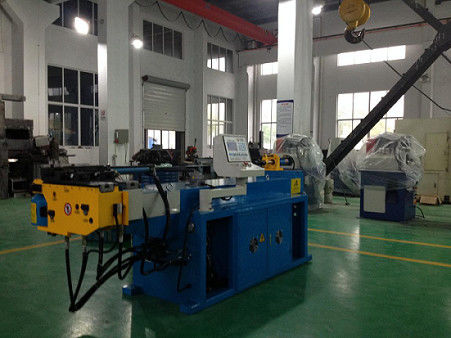

50NC Tube bender
| Model | 50NC |
| Taking the biggest bending radius 1.5D suitable for carbon steel tube material as example | ￠50×2.5t |
| Max. effective distance of mandrel (a) | 2000mm |
| Max. bending radius | 250mm |
| Max. bending angle | 185° |
| Oil pump | 5.5KW |
| Bending drive system | gear and rack |
| Control system | PLC |
| Boost | Hydraulic |
| Cooling system | Water cooling |
| Protection system 1 | Two-way bent arm switch |
| Protection system 2 | Emergency stop |
| Max.curve no. of one tube | 16 |
| Max oil pressure | 14Mpa |
| Weight | ca. 1500kg |
| L.W.H(cm) | 355×100×125 |
Function
1. NC-control, hydraulic drive, bending angle preset.
2. New-designed camshaft is applied, which can eliminate wear clearance of gear and rack.
3. Forked-tail designed sliding block. Self-lubricating sliding components (oilless bearing).
4. Chinese display, HMI, manual/semi-automatic operation, movable pedal switch (start / emergency stop), two-way bent arm switch.
5. Hydraulic components are from famous suppliers.
6. Powerful cooling system for effective temperature control.
7. Easy operation, stable running, high efficiency, safe for operation.
Applications:
Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger
Features
1. The feeding shaft will perform automatic detection before acting,so that the feeding shaft is avoided from bumping the machine
2. When the curves are tested,analytical actions can be used,the actions are modified by the careful observation of the interference points ,so that the efficiency is improved.
3. After the data are compiled,the data is protected by a key,so that the data are prevented from any modification.
4. The electric control system is equipped with a heat exchanger for automatic heat dissipation;if necessary,a numerical control type refrigerator can be additionally bought,so that the life span of the electric control system is ensured.
5. An automatic oil charging system is installed to reduce friction of the bending tube.It prolongs the lifetime of the core rod and improves the quality of the bended tube.
6. All processing data are inputted by the touch screen
7. Based on the change of materials,each curve is set with a compensation value,a speed and a demoulding gap.
8. The Mitsubishi ultra-large CPU can accommodate 400 groups of files for compiling,if necessary,the additional transmission software is bought and installed in the computer,and the documents and files are stored in the hard disk,so that the number of compiling groups is unlimitedly expanded.
9. Industrial-use computer type:the WINDOWS operating system is internally installed,and used together with the Mitsubishi servo system,besides the Mitsubishi servo driving,the convenient file management owned by the WINDOWS operating system is also provided;and the files can be storted in the hard disk or soft disk,so that the compiling groupnumber is unlimitedly expanded.
10. Chinese/English language are switched to display on the touch screen,and customers can also purchase the machine installed with other languages
