High Speed Automatic Tube Cutting Machine HT-485CNC Operation Pressure 25-35kg/C㎡

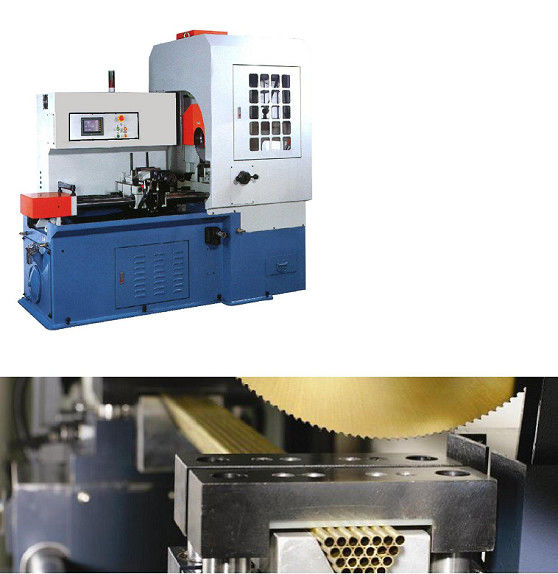

Large Image : High Speed Automatic Tube Cutting Machine HT-485CNC Operation Pressure 25-35kg/C㎡

Product Details:

Place of Origin:	China
Brand Name:	Y&T
Certification:	CE
Model Number:	HT-485CNC

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiatable
Packaging Details:	Standard export wooden case or pallet package

Contact Now

Detailed Product Description

Module No.:	HT-485CNC	Head Swivel:	90°
Max.Clamping Capacity:	150	Machine Dimensions:	195013002000
Material Feeding Precision:	±0.05mm	Usage:	Tube Cuttings
Highlight:	hydraulic pipe cutting machine , steel pipe cutting machine

HT-485CNC cutting machine

main parameter			HT-485CNC
Main Drive Motor			A:5HP/3HP 2/4.pole			5HP		4pole (std. )
			(std. )
			Low 50HZ/60HZ
			70/35rpm
			High 50HZ/60HZ
			120/60rpm
			B:3HP 6 pole					2pole
			(opt. )					(std. )
			50HZ 35/20 rpm			A:L 20RPM-70RPM
			60HZ 42/23 rpm			H 35RPM-120RPM
						B:L 40RPM-140RPM
Blade Speede						H 70RPM-240RPM
A:4 sections
B:2 sections
Frequency lnverter							5kw/7.5HP
Head Swivel			90°
Clamping Vise
Coolant Pump Motor			1/8HP 1/4HP
Max.Clamping Capacity			150
	Diameter	mm	HSSø250ø-425(1＂-17＂)
			ø350
Available Saw Blade Size	Bore	mm	32
	Pin Holes	mm	2ø11PCD63
	Single Stroke	mm	5-650(26＂)
Feeding Length	Double Stroke	mm	5-1300(51＂)		0-700
	Three Stroke	mm	5-1950(77＂)
Length		mm	-	0-650	-
Servo Motor Feeding			-		1KW
Hydraulic Pump Motor			3HP(4P)
Operation Pressure			25-35kg/C㎡
Machine Dimensions(LWH)		mm	195013002000 220014002200
Packing Dimensions(LWH)		mm	220013002200 228016002200
		inch	87＂52＂87＂ 90＂63＂87＂
Net Weight			1400kgw(3080 lbs) 1450kgw(3190 lbs)
Gross Weight			1600kgw(3520 lbs) 1650kgw(3630 lbs)

Applications:

Tube cuttings for Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger

Features
1. vertical slideway for advanced and retreat blade up and down.Cutting feed is steady and cutting tools are of long use life.High precision of saw cutting.
2. European design .multiple group of gear transmission is suitable to heavy cutting with steady precision
3. elaborate design of material feed system.The length of feed material can be set as 6-640m/mz(material feed can be divided into three times)
4. elaborate design of material feed floating system so as not to damage the surface of work piece and with high precision of material feed.
5. special main clamp design,the strength is solid
6. Slideway automatically add oil for lubricating,long use life of machine
7. Use PLC controller,no connected point,no fault and easy for maintenance
8. Cooling liquid automation circulation to ensure the smoothness of cutting surface of work piece.
9. centralized control button.Easy and simple operation.
10. Equipped with electric saw protection operation.
11. Equipped with electric saw cutting number setting and total number
12. Automatic stop when without material
13. Saw pieces are centralized for disposal which is convenient and clean
14. Digital displayer,easy fast and exact adjustment of length.
