Product Details:
Payment & Shipping Terms:
|
| Module No.: | MC325CNC | Automation: | Automatic |
|---|---|---|---|
| Main Axle Rotating Speed: | 105/53R.P.M | Working Voltage: | 380V |
| Machine Weight: | 950KG | Size: | 1800*900*1500mm |
| Highlight: | hydraulic pipe cutting machine,steel pipe cutting machine |
||

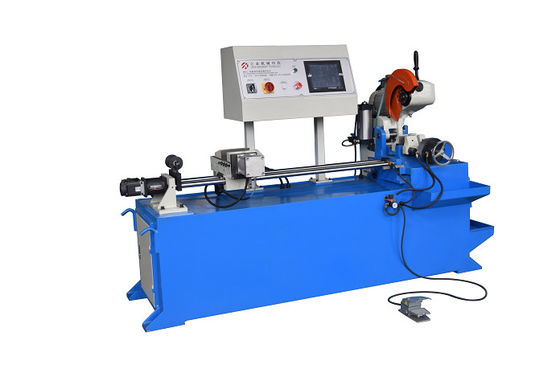

MC325CNC- automatic tube cutting machine
| Main specification | MC325CNC | |
| Sawing Range | Round pipe | Φ80 mm |
| Square pipe | 80*60mm | |
| Square pipe | 60*80mm | |
| Square pipe | 80mm | |
| Material Cutting precision | ±0.1mm | |
| Main axle rotating speed | 105/53R.P.M | |
| Motor | 3KW | |
| Available Saw Blade Size | OD 250-325mm | |
| Center hole 32mm | ||
| Working Voltage | 380V | |
| Compressed air | 0.6MPa | |
| Machine weight | 950KG | |
| Size | 1800*900*1500mm | |
Main Features
1, Foot switch, that is, automatic material, automatic sawing. Single or multiple saws can be cut at the same time, and the hand does not need to be close to the saw blade, which is safe.
2. The pressing system and the sawing system are respectively controlled by independent air cylinders. The sawing speed can be adjusted according to the material type, and the high and low speed sawing can be selected according to the material type, and the pressing system can be pressed completely and tightly. material.
3. The pressure of the material can be adjusted separately according to the type of material to prevent material damage caused by heavy pressure.
4. The automatic cooling system is a forced cooling system, which improves the cooling effect of lubrication and improves the tool life and the smoothness of the sawing surface.
5. This machine adopts the toothed imported high-speed steel saw blade to make the sawing process without sparks, dust and smokeless dust, and the sawing surface is smooth and burr-free, and efficient.
6, Servo feeding high speed and fast.
Applications:
Tube cuttings for Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger
Features
1. How to choose the tube cutting machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2. Do you provide any training to make sure our user can operate the machine very well?
1) We will provide detailed video and instruction book for this machine;
2) We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
4. What kind of solution you can offer to make sure your tube cutting machine can do our job?
1) We will help you confirm the model of our machine according to your offered pipe information.
2) Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3) You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
