Product Details:
Payment & Shipping Terms:
|
| Module No.: | MC325FA | Automation: | Automatic |
|---|---|---|---|
| Power: | Pneumatic | Suitable Saw Blade: | Outer Diameter 250/200/315mm |
| Advantages: | High Cutting Speed, No Noise Nor No Burrs | Usage: | Tube Cuttings |
| Highlight: | automatic pipe cutting machine,steel pipe cutting machine |
||

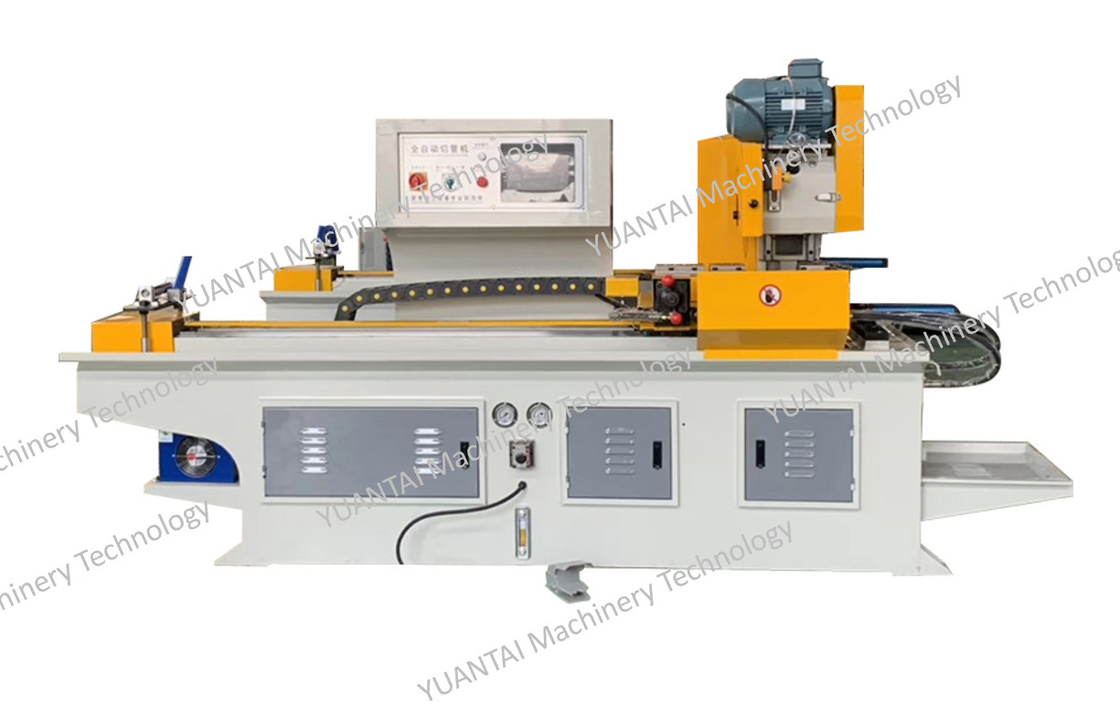

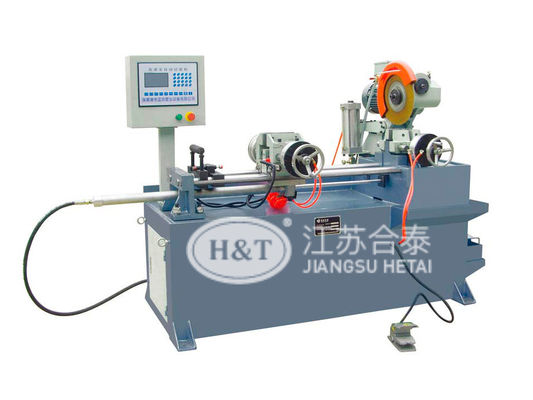

MC315F Pneumatic semi-auto tube cutting machine
| Main parameters | ||
| cutting capacity | round tube | Φ110/4xΦ25 |
| round bar | Φ55 | |
| square tube | 100x100 | |
| square bar | 50x50 | |
| suitable blade | HSS sawblade | OD 250-350mm |
| Use compressed air | 0.6MPa | |
| feeding precision | 6-600mm/once three times for feeding | |
| Machine Features |
| (1) Servo feeding, automatic pneumatic clamping and cutting |
| (2) Multiple gear transmission, suitable for heavy cutting with stable precision |
| (3) Floating feeding, no damage to the surface of the workpiece, high precision |
| (4) Unique main clamp design, stable and firm clamping force |
| (5) PLC controls,touch screen controls |
| (6) Automatic slide lubrication, automatic stop when there's no material； |
| (7) Configure electronic sawing quantity setting and counting； |
| (8) Filings centralized treatment, convenient and clean |
Applications:
Tube cuttings for Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger
1. How to choose the tube cutting machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2. Do you provide any training to make sure our user can operate the machine very well?
1) We will provide detailed video and instruction book for this machine;
2) We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
4. What kind of solution you can offer to make sure your tube cutting machine can do our job?
1) We will help you confirm the model of our machine according to your offered pipe information.
2) Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3) You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
