Automatic CNC Mandrel Tube Bender CNC65REM Small Diameter Tube Processing

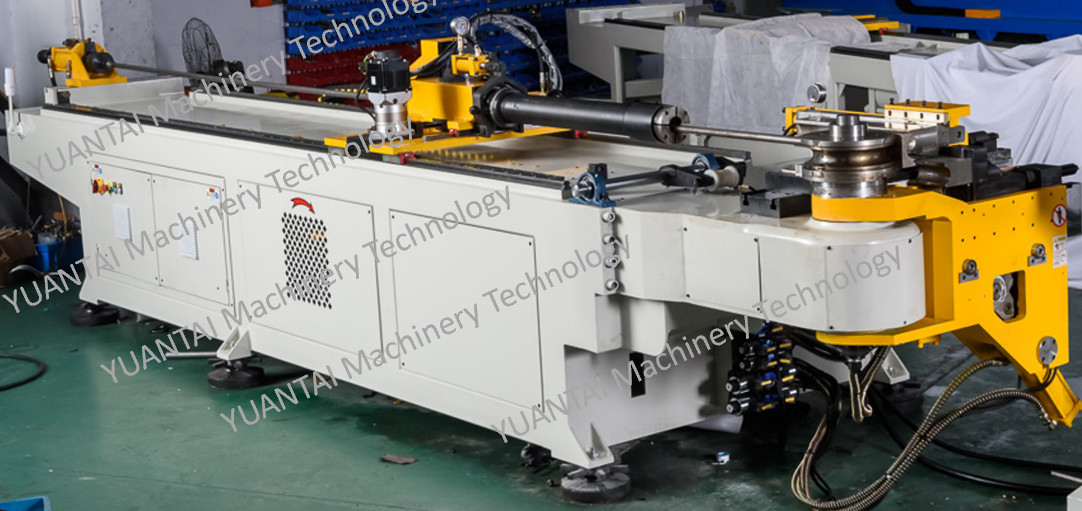

Large Image : Automatic CNC Mandrel Tube Bender CNC65REM Small Diameter Tube Processing

Product Details:

Place of Origin:	China
Brand Name:	YUANTAI
Certification:	CE
Model Number:	CNC65REM

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiatable
Packaging Details:	Standard export wooden case or pallet package

Contact Now

Detailed Product Description

Automation:	Automatic	Machine Type:	Pipe And Tube Bending Machine
Power:	Electric Control	Application:	Fitness Equipment
Roll Bending:	Optional	Extra Services:	End Forming
Highlight:	cnc mandrel tube bender , mechanical pipe bending machine

CNC65REM Tube bender

machine characteristics		main technical parameters
(1) Electical servo bending	Max capacity	round tube/iron tube( S=40kgf/mm )	65x2.5t
(2) Imported servo motor and reducer		Round tube/non iron metal tube( S=25kgf/mm )	65x4.5t
(3) Independent R & D software system		Round tube /stainless steel tube( S=60kgf/mm )	65x1.6t
(4) 1-4 layer die optional		Square tube/Metal Tube( S=40kgf/mm )	50x50x2.3t
(5) 11 axis full motor type optional		Round bar( S=40kgf/mm )	33
Push-bending type, bending radius7D	Servo bending axis	precision	±0.05
RBE strongly back push bending, minimum bending radius is 1D	Servo bending axis	max speed	100°/sec
	Servo material feeding axis	precision	0.05mm
	Servo material feeding axis	max speed	1000mm/sec RBE: 240mm/sec
	Servo tube rotate axis	precision	0.05
	Servo tube rotate axis	max speed	200°/sec

Advantages:

1. Low cost for operator training,high production effeciency and product uniformity.

2. Drived by electric servo motors.compared with hydraulic drive,it has higher stability and longer lifetime.It is unnecessary to worry about oil-leak or working temperature.

3. Gapless tube bending,with long-time high precision and processing efficiency,easy for operation.It has good compatibility.

4. Small in size,low noise level

5. Low running cost,with best cost performance for tube processing.

6. Widely used in small-diameter tube processing,for example tubes of air conditioner and oil tube for autos

Standard models:1~5 stacks,4~6 servo motors

Advanced motor:11 fully electric servo motors

Applications:

Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger etc.

Our Company:

Yuantai (Zhangjiagang) Machinery Technology Co., Ltd. is a leading technology enterprise specializing in the manufacture and development of CNC tube bending machines. Many kinds of CNC tube bender developed by the company are in the leading level at home and abroad and even in the world, reaching the world synchronous leading level.

The company independently developed the full-electric CNC tube bending machine control system is in the industry leading level, and obtained dozens of patents. Advanced techniques such as three-dimensional dynamic information simulation design and finite element force analysis are used in mechanical design.
