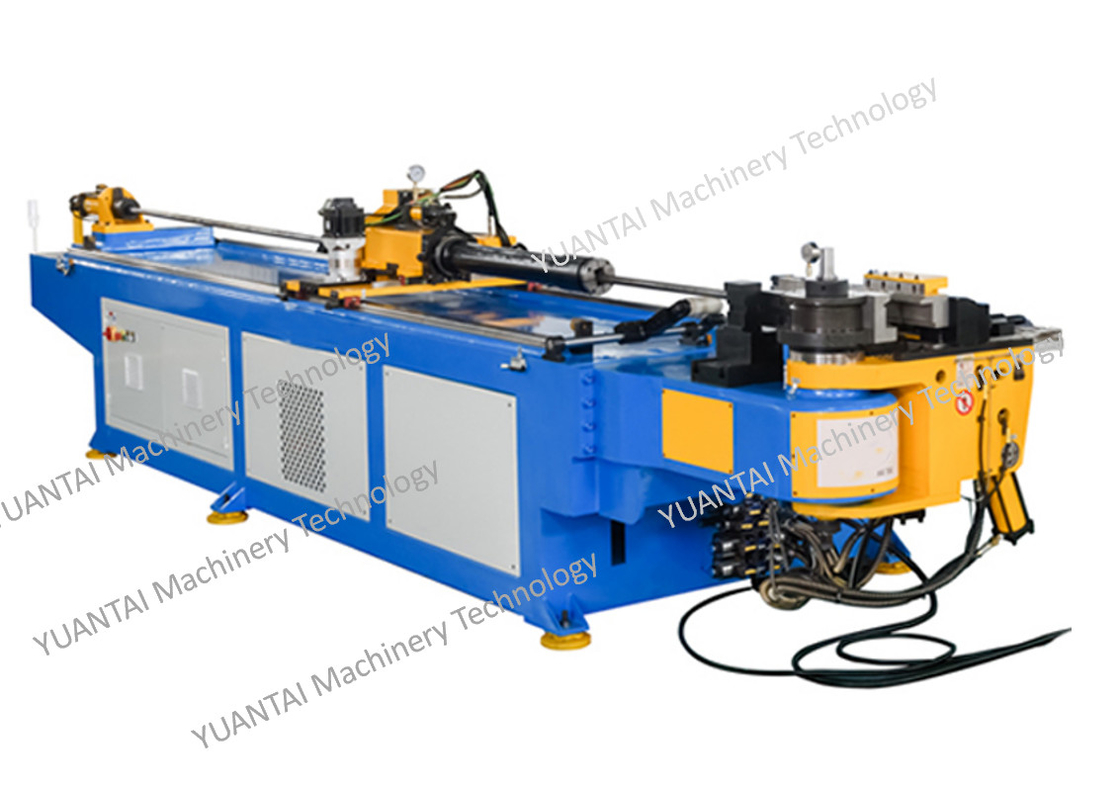

CNC100RHS+RBH Tube bender
1. tube bending machine
2. High precision,Wide application
3. CE Certification, ISO Certification
4. High performance and easy to operate
5. Digital display CNC and NC
machine characteristics | main technical parameter | ||
| (1) Electical servo bending | Max capacity | round tube/iron tube ( S=40kgf/mm ) | 127x3.8t |
| (2) Imported servo motor and reducer | Round tube/non iron metal tube ( S=25kgf/mm ) | 127x6.0t | |
| (3) Independent R & D software system | Round tube /stainless steel tube ( S=60kgf/mm ) | 127x2.5t | |
| (4)1-4 layer die optional | quare tube/Metal Tube ( S=40kgf/mm ) | 90x90x3.5t | |
| (5)11 axis full motor type optional | Round bar ( S=40kgf/mm ) | 60 | |
Push-bending type, bending radius7D | Servo bending axis | precision | ±0.05° |
RBE strongly back push bending, minimum bending radius is 1D | max speed | 65°/sec | |
Servo material feeding axis | precision | ±0.05mm | |
max speed | 580mm/sec | ||
| RBE: 110mm/sec | |||
Servo tube rotate axis | precision | ±0.05° | |
max speed | 100°/sec |
Machine characteristics:
1, Automatic tube bending machine workstation, Tube forming in one time .
2, Reduce labor ,saving labor cost.
3, Two automatic feeding machines each feed the tube bender automatically, and a robot loads and palletizes the two tube benders at the same time.
4, The whole process all is controlled by PLC , with touch screen man-machine interface, the efficiency is improved wholely
5, Automatic Identification of tube welds to make tube Bend Machine avoid Weld seam
6, Use Industrial Robot for loading and unloading stacking
Applications:
Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger
Features
1. The Mitsubishi ultra-large CPU can accommodate 400 groups of files for compiling,if necessary,the additional transmission software is bought and installed in the computer,and the documents and files are stored in the hard disk,so that the number of compiling groups is unlimitedly expanded.
2. Industrial-use computer type:the WINDOWS operating system is internally installed,and used together with the Mitsubishi servo system,besides the Mitsubishi servo driving,the convenient file management owned by the WINDOWS operating system is also provided;and the files can be storted in the hard disk or soft disk,so that the compiling groupnumber is unlimitedly expanded.
3. Automatic 3D simulation function for tube-forming is selected as required.
4. An automatic error-fault detecting function is provided,and the errors and faults are displayed on the screen,so that the operator can much easily troubleshoot.
5. Automatic 3D simulation function for detecting interferring position is selected as required.
6. Chinese/English language are switched to display on the touch screen,and customers can also purchase the machine installed with other languages
7. The feeding mode comprises the clamping feeding mode or the direct feeding mode which is selected as required.
8. The X.Y.Z coordinate can be automatically switched into the Y.B.C processing values
9. After the data are compiled,the data is protected by a key,so that the data are prevented from any modification.
10. The electric control system is equipped with a heat exchanger for automatic heat dissipation;if necessary,a numerical control type refrigerator can be additionally bought,so that the life span of the electric control system is ensured.
