High Speed Automatic Tube Bending Machine CNC25REX Max 180 Degree / Sec

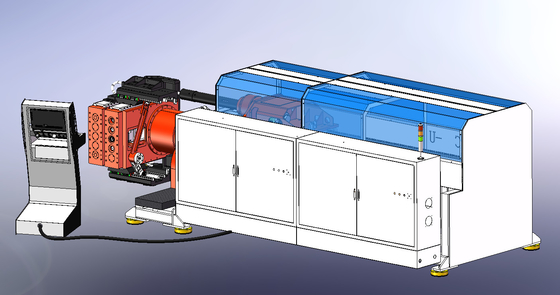

Large Image : High Speed Automatic Tube Bending Machine CNC25REX Max 180 Degree / Sec

Product Details:

Place of Origin:	China
Brand Name:	YUANTAI
Certification:	CE
Model Number:	CNC25REX

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiatable
Packaging Details:	Standard export wooden case or pallet package

Contact Now

Detailed Product Description

Module No.:	CNC25REX	Automation:	Automatic
Material / Metal Processed:	Metal Carbon Steel, Iron, Stainless Steel Pipes	Max Bending Speed:	180 Deg/s
Tube Bending Precision:	0.05	Machine Type:	Pipe And Tube Bending Machine
Highlight:	cnc pipe bender , mechanical pipe bending machine

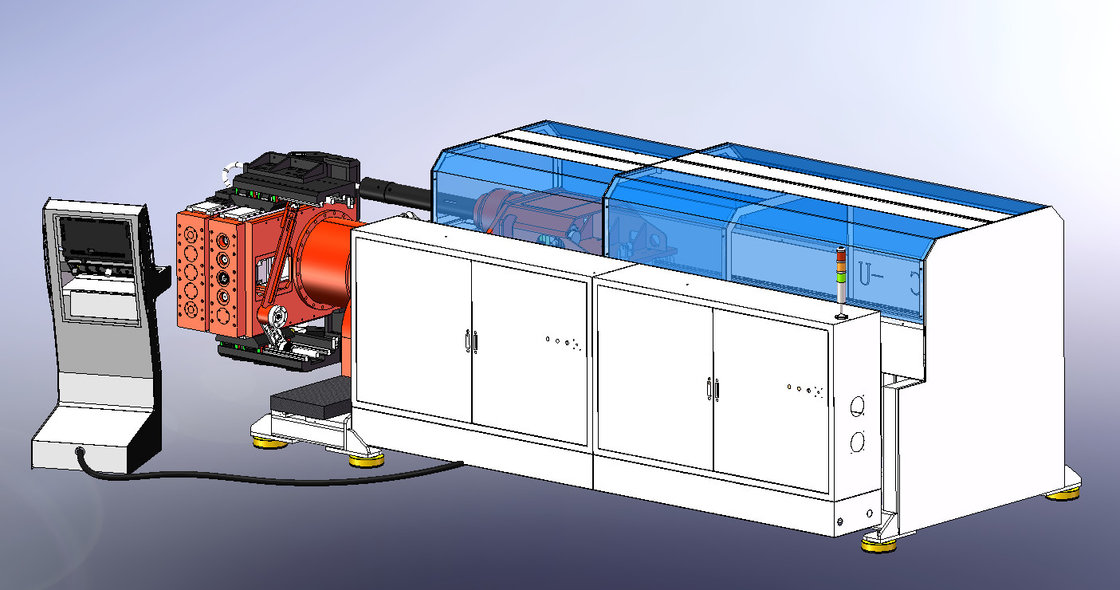

CNC25REX Tube bender

Tube bending machine has both left and right bending functions, for the individual tube bending machine will interfere with the workpiece, this machine can be completed in one time; CNC8 axis is servo independent controlled, all actions can be accurately adjusted in the touch screen, the accuracy is very high. The model has the function of setting mandrel pulling in advance and mandrel automatic lubrication system.

Max bending capacity (carbon steel as example)	mm	20*1.5	20*1.5	38*1.5
Max bending Radius	mm	70	150	200
Max Bending degree	degree	190	195	195
clamping distance	mm	40	100	130
material Feeding precision	mm	0.1	0.1	0.1
Tube bending precision	degree	0.1	0.1	0.1
Rotate precision	deg/sec	0.1	0.1	0.1
Tube bending speed	deg/s	180	120	180
Material Feeding speed	mm/sec	1200	1200	1200
Rotate speed	deg/s	360	220	360
Total power	kw	7	11	15
Air resource	Mpa	0.4-0.6	0.4-0.6	0.4-0.6
Power	v/Hz	380/50	380/50	380/50
Solenoid valve voltage	V	24	24	24

Advantages:

1. Low cost for operator training,high production effeciency and product uniformity.

2. Drived by electric servo motors.compared with hydraulic drive,it has higher stability and longer lifetime.It is unnecessary to worry about oil-leak or working temperature.

3. Gapless tube bending,with long-time high precision and processing efficiency,easy for operation.It has good compatibility.

4. Small in size,low noise level

5. Low running cost,with best cost performance for tube processing.

6. Widely used in small-diameter tube processing,for example tubes of air conditioner and oil tube for autos

Standard models:1~5 stacks,4~6 servo motors

Advanced motor:11 fully electric servo motors

Applications:

Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger

Our Company:

Yuantai (Zhangjiagang) Machinery Technology Co., Ltd. is a leading technology enterprise specializing in the manufacture and development of CNC tube bending machines. Many kinds of CNC tube bender developed by the company are in the leading level at home and abroad and even in the world, reaching the world synchronous leading level.

The company independently developed the full-electric CNC tube bending machine control system is in the industry leading level, and obtained dozens of patents. Advanced techniques such as three-dimensional dynamic information simulation design and finite element force analysis are used in mechanical design.

FAQ

1. How to choose the pipe/tube bending machine?

You have to inform us following details:

- Max. outside diameter

- Wall thickness range

- Bending radius (CLR)

- The pipe material

- The drawings if possible

2. Do you provide any training to make sure our user can operate the machine very well?

1) We will provide detailed video and instruction book for this machine;

2) We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!

3. How long warranty can you provide?

Our machine warranty is one year,and we use all the stable compoenents with long working life!

And we can also send our technician to do the after-sale service in client's factory!
