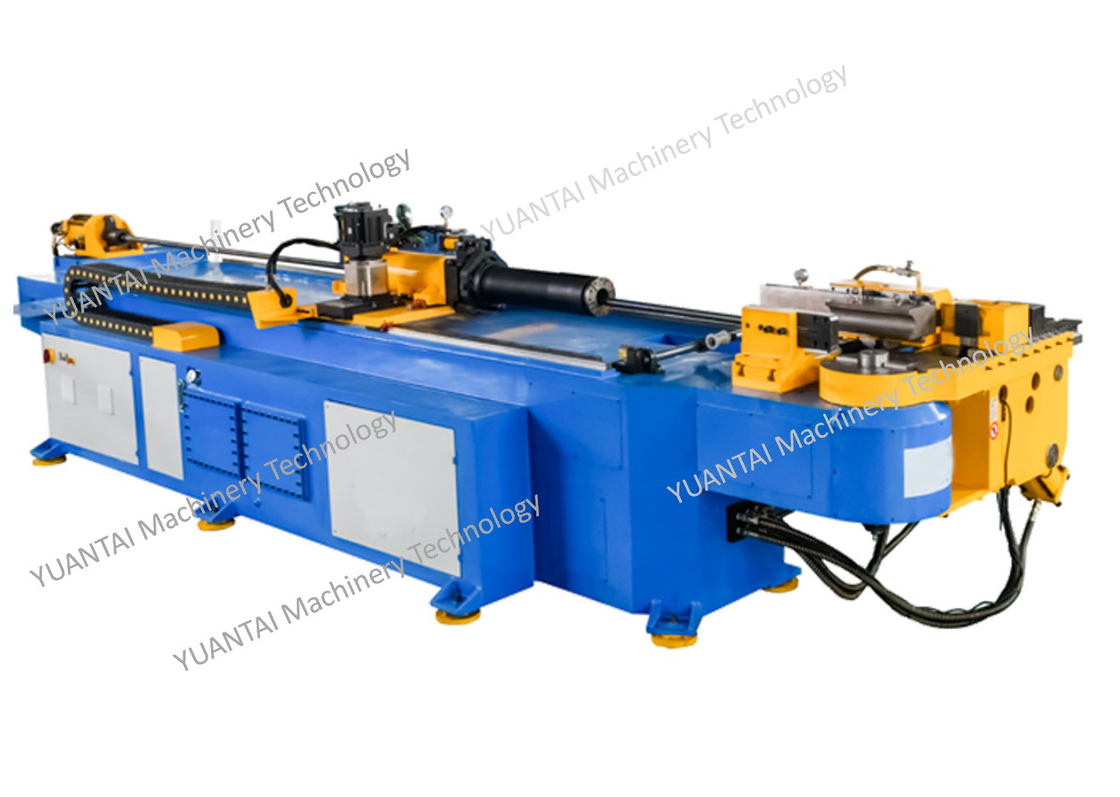

CNC130RHS Tube bender
Oil-electrical Hybrid Drive system, control system, drive system, display system, etc. all adopt high-reliability imported parts, with high precision, high efficiency, suitable for mass production, with international and domestic advanced level.
It is a CNC automatic pipe bending machine, which is equipped with a full-featured device for bending three-dimensional space pipe fittings. The input program is automatically completed during the entire bending process. The machine has the characteristics of convenient operation, stable performance, high work efficiency and high safety factor. It is an ideal equipment for the pipe fitting processing industry.
|
machine characteristics
|
|
main technical parameter
|
|
| (1) Electical servo bending |
Max capacity
|
round tube/iron tube
( S=40kgf/mm ) |
127x3.8t |
| (2) Imported servo motor and reducer |
Round tube/non iron metal tube
( S=25kgf/mm ) |
127x6.0t |
| (3) Independent R & D software system |
Round tube /stainless steel tube
( S=60kgf/mm ) |
127x2.5t |
| (4) 1-4 layer die optional |
Square tube/Metal Tube
( S=40kgf/mm ) |
90x90x3.5t |
| (5) 11 axis full motor type optional |
Round bar
( S=40kgf/mm ) |
60 |
|
Push-bending type, bending radius7D
|
Servo bending axis
|
precision
|
0.05 |
|
RBE strongly back push bending, minimum bending radius is 1D
|
max speed
|
65°/sec |
| |
Servo material feeding axis
|
precision
|
0.05mm |
| |
max speed
|
580mm/sec |
| RBE: 110mm/sec |
| |
Servo tube rotate axis
|
precision
|
0.05 |
| |
max speed
|
100°/sec |
Advantages:
1. Low cost for operator training,high production effeciency and product uniformity.
2. Drived by electric servo motors.compared with hydraulic drive,it has higher stability and longer lifetime.It is unnecessary to worry about oil-leak or working temperature.
3. Gapless tube bending,with long-time high precision and processing efficiency,easy for operation.It has good compatibility.
4. Small in size,low noise level
5. Low running cost,with best cost performance for tube processing.
6. Widely used in small-diameter tube processing,for example tubes of air conditioner and oil tube for autos
Standard models:1~5 stacks,4~6 servo motors
Advanced motor:11 fully electric servo motors
Applications:
Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger
Our Company:
Yuantai (Zhangjiagang) Machinery Technology Co., Ltd. is a leading technology enterprise specializing in the manufacture and development of CNC tube bending machines. Many kinds of CNC tube bender developed by the company are in the leading level at home and abroad and even in the world, reaching the world synchronous leading level.
The company independently developed the full-electric CNC tube bending machine control system is in the industry leading level, and obtained dozens of patents. Advanced techniques such as three-dimensional dynamic information simulation design and finite element force analysis are used in mechanical design.
