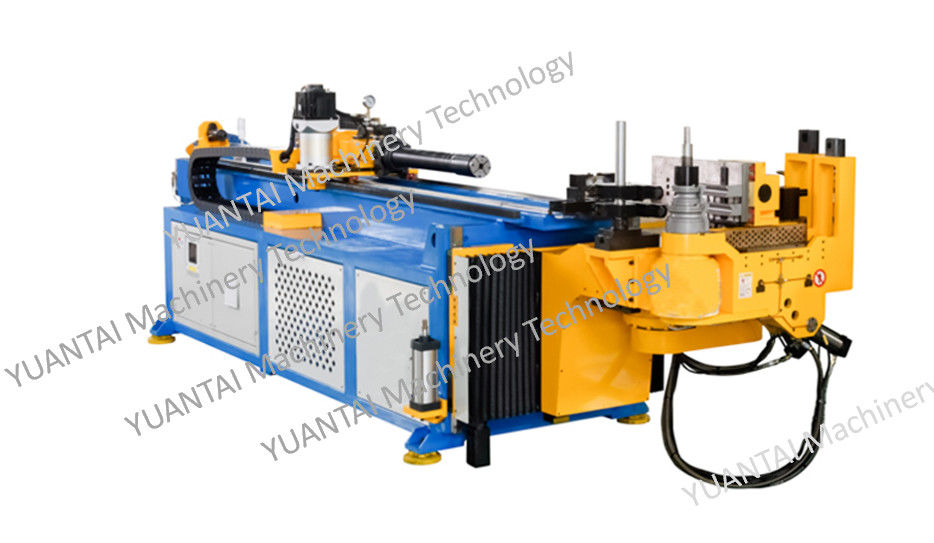

CNC50REM Tube bender
|
machine characteristics
|
|
main technical parameter |
round tube/iron tube( S=40kgf/mm ) |
| (1) Electical servo bending |
Max capacity |
round tube/iron tube( S=40kgf/mm ) |
50.8x2.0t |
| (2) Imported servo motor and reducer |
Round tube/non iron metal tube( S=25kgf/mm ) |
50.8x3.5t |
| (3) Independent R & D software system |
Round tube /stainless steel tube( S=60kgf/mm ) |
50.8x1.3t |
| (4) 1-5 layer die optional |
Square tube/Metal Tube( S=40kgf/mm ) |
40x40x1.8t |
| (5) 11 axis full motor type optional |
Round bar( S=40kgf/mm ) |
25 |
| Push-bending type, bending radius7D |
Servo bending axis |
precision |
±0.05 |
| |
max speed |
160°/sec |
| |
Servo material feeding axis |
precision |
0.05mm |
| |
max speed |
1000mm/sec |
| |
Servo tube rotate axis |
precision |
0.05 |
| |
max speed |
200°/sec |
Main features of CNC50REM pipe bending machine:
- Operate by CNC control unit, imported electric and hydraulic elements.
- English showing and conversational operation.
- It can adjust speed in each bend and the bending precision is high.
- 16 groups of bending information can be stored. Multiple angles can be finished once.
- The foot switches with functions of automatic start, emergency stop and resuming.The safety is high.
- Delicate design of the bending head makes the bending space large.
- Suitable Materials: Steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others.
Applications:
Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger
Features
1. The electric control system uses famous Japanese controllers,such as servo drivers,servo motors,positioning modules and CPUs manufatured by the Mitsubishi Corporation,and is high in performance and good stability.
2. The Mitsubishi ultra-large CPU can accommodate 400 groups of files for compiling,if necessary,the additional transmission software is bought and installed in the computer,and the documents and files are stored in the hard disk,so that the number of compiling groups is unlimitedly expanded.
3. Automatic 3D simulation function for detecting interferring position is selected as required.
4. All processing data are inputted by the touch screen
5. The feeding mode comprises the clamping feeding mode or the direct feeding mode which is selected as required.
6. The X.Y.Z coordinate can be automatically switched into the Y.B.C processing values
7. An automatic oil charging system is installed to reduce friction of the bending tube.It prolongs the lifetime of the core rod and improves the quality of the bended tube.
8. The machine can be connected with a printer so as to print the data displayed on the screen.
9. The feeding shaft will perform automatic detection before acting,so that the feeding shaft is avoided from bumping the machine
10. When the curves are tested,analytical actions can be used,the actions are modified by the careful observation of the interference points ,so that the efficiency is improved.
