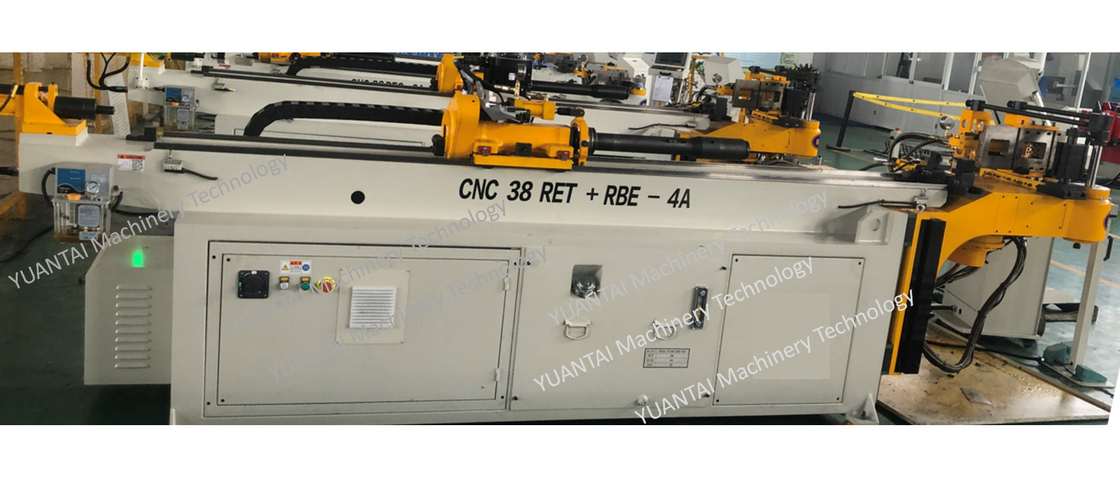

CNC38REMP Tube bender
|
machine characteristics
|
|
main technical parameter
|
|
| (1) Electical servo bending |
Max capacity |
round tube/iron tube( S=40kgf/mm ) |
38.1x1.8t |
| (2) Imported servo motor and reducer |
Round tube/non iron metal tube
( S=25kgf/mm ) |
38.1x3.0t |
| (3) Independent R & D software system |
Round tube /stainless steel tube
( S=60kgf/mm ) |
38.1x1.2t |
| (4) 1-6 layer die optional |
Square tube/Metal Tube
( S=40kgf/mm ) |
30x30x1.5t |
| (5) 11 axis full motor type optional |
Round bar
( S=40kgf/mm ) |
20 |
|
Push-bending type, bending radius7D
|
Servo bending axis
|
precision
|
±0.05 |
| |
max speed
|
160°/sec |
| |
Servo material feeding axis
|
precision
|
0.05mm |
| |
max speed
|
1100mm/sec |
| |
Servo tube rotate axis
|
precision
|
0.05 |
| |
max speed
|
240°/sec |
Machine characteristics:
1, Automatic tube bending machine workstation, Tube forming in one time .
2, Reduce labor ,saving labor cost.
3, Two automatic feeding machines each feed the tube bender automatically, and a robot loads and palletizes the two tube benders at the same time.
4, The whole process all is controlled by PLC , with touch screen man-machine interface, the efficiency is improved wholely
5, Automatic Identification of tube welds to make tube Bend Machine avoid Weld seam
6, Use Industrial Robot for loading and unloading stacking
Applications:
Auto, motorbike, aircraft,bicycle, kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger
Features
1.The Mitsubishi ultra-large CPU can accommodate 400 groups of files for compiling,if necessary,the additional transmission software is bought and installed in the computer,and the documents and files are stored in the hard disk,so that the number of compiling groups is unlimitedly expanded.
2. Industrial-use computer type:the WINDOWS operating system is internally installed,and used together with the Mitsubishi servo system,besides the Mitsubishi servo driving,the convenient file management owned by the WINDOWS operating system is also provided;and the files can be storted in the hard disk or soft disk,so that the compiling groupnumber is unlimitedly expanded.
3. Automatic 3D simulation function for detecting interferring position is selected as required.
4. All processing data are inputted by the touch screen
5.Chinese/English language are switched to display on the touch screen,and customers can also purchase the machine installed with other languages
6. The feeding mode comprises the clamping feeding mode or the direct feeding mode which is selected as required.
7.The electric control system is equipped with a heat exchanger for automatic heat dissipation;if necessary,a numerical control type refrigerator can be additionally bought,so that the life span of the electric control system is ensured.
8. An automatic oil charging system is installed to reduce friction of the bending tube.It prolongs the lifetime of the core rod and improves the quality of the bended tube.
9. A feeding cart’s feeding position,safety position,wheel mode interfering position and guided mode interfering position are set,so that a hand wheel pulse wave generator can be finely tuned,the position can be automatically remembered,and the error caused by the manual measurement and the loss caused by the feeding cart bumping the machine are eliminated
10. The feeding shaft will perform automatic detection before acting,so that the feeding shaft is avoided from bumping the machine
