Product Details:
Payment & Shipping Terms:
|
| Automation: | Automatic | Machine Type: | Pipe And Tube Bending Machine |
|---|---|---|---|
| Power: | Electric Control | Application: | Fitness Equipment |
| Roll Bending: | Optional | Extra Services: | End Forming |
| Highlight: | cnc pipe bender,mechanical pipe bending machine |
||

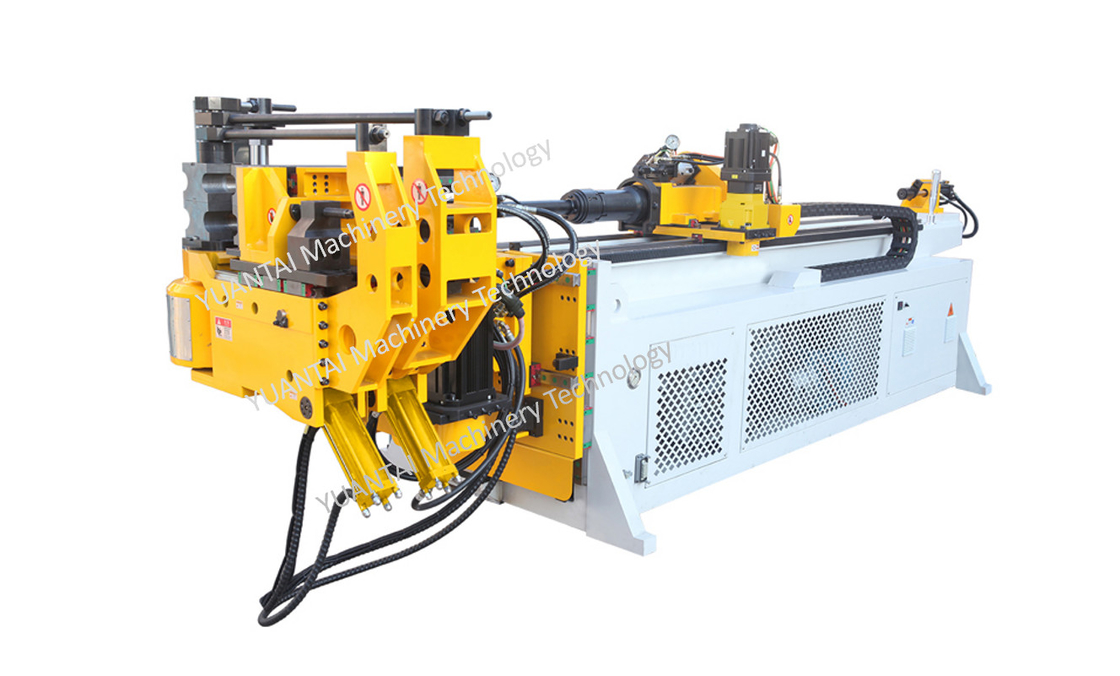

CNC65REM Tube bender
| machine characteristics | main technical parameter | ||
| (1) Electical servo bending |
Max capacity |
round tube/iron tube( S=40kgf/mm ) | 65x2.5t |
| (2) Imported servo motor and reducer | Round tube/non iron metal tube( S=25kgf/mm ) | 65x4.5t | |
| (3) Independent R & D software system | Round tube /stainless steel tube( S=60kgf/mm ) | 65x1.6t | |
| (4) 1-4 layer die optional | Square tube/Metal Tube( S=40kgf/mm ) | 50x50x2.3t | |
| (5) 11 axis full motor type optional | Round bar( S=40kgf/mm ) | 33 | |
| Push-bending type, bending radius7D | Servo bending axis | precision | ±0.05 |
|
RBE strongly back push bending, minimum bending radius is 1D |
max speed | 100°/sec | |
| Servo material feeding axis | precision | 0.05mm | |
| max speed | 1000mm/sec RBE: 240mm/sec |
||
| Servo tube rotate axis | precision | 0.05 | |
| max speed | 200°/sec |
Advantages:
1. Low cost for operator training,high production effeciency and product uniformity.
2. Drived by electric servo motors.compared with hydraulic drive,it has higher stability and longer lifetime.It is unnecessary to worry about oil-leak or working temperature.
3. Gapless tube bending,with long-time high precision and processing efficiency,easy for operation.It has good compatibility.
4. Small in size,low noise level
5. Low running cost,with best cost performance for tube processing.
6. Widely used in small-diameter tube processing,for example tubes of air conditioner and oil tube for autos
Standard models:1~5 stacks,4~6 servo motors
Advanced motor:11 fully electric servo motors
Applications:
Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger
Features
1. Automatic 3D simulation function for tube-forming is selected as required.
2. An automatic error-fault detecting function is provided,and the errors and faults are displayed on the screen,so that the operator can much easily troubleshoot.
3. Automatic 3D simulation function for detecting interferring position is selected as required.
4. All processing data are inputted by the touch screen
5. Based on the change of materials,each curve is set with a compensation value,a speed and a demoulding gap.
6. Each curve of one tube can be programmed with five action sequences and ten-stage speeds,so that the processing efficiency is improved,and the interference point is reduced.
7. Chinese/English language are switched to display on the touch screen,and customers can also purchase the machine installed with other languages
8. The machine can be connected with a printer so as to print the data displayed on the screen.
9. Communication interface can be installed as required,which can be connected to our company.Our engineer will provided remote service of real-time monitoring,data updating,failure checking and so on.
10. A feeding cart’s feeding position,safety position,wheel mode interfering position and guided mode interfering position are set,so that a hand wheel pulse wave generator can be finely tuned,the position can be automatically remembered,and the error caused by the manual measurement and the loss caused by the feeding cart bumping the machine are eliminated
