Product Details:
Payment & Shipping Terms:
|
| Module No.: | CNC65REM+RBE | Automation: | Automatic |
|---|---|---|---|
| Machine Type: | Pipe And Tube Bending Machine | Power: | Oil-electrical Hybrid Drive |
| Precision: | 0.05 | Max Speed: | 180°/sec |
| Highlight: | cnc mandrel tube bender,mechanical pipe bending machine |
||

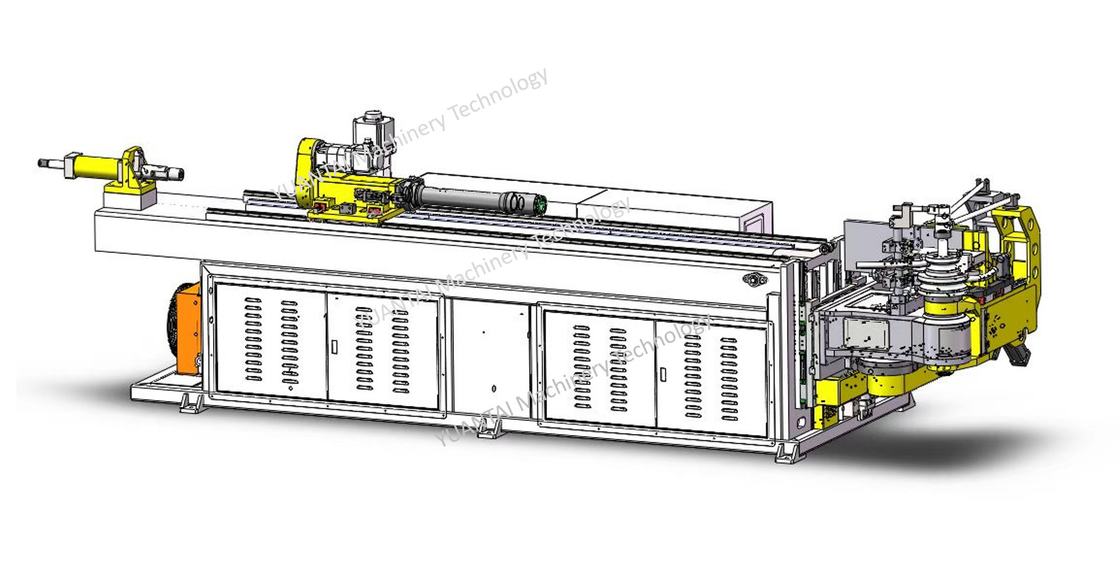

CNC65REM+RBE Tube bender
|
machine characteristics |
main technical parameter |
||
| (1) Electical servo bending |
Max capacity |
Round tube/iron metal tube ( S=40kgf/mm ) |
65x2.5t |
| (2) Imported servo motor and reducer |
Round tube/non iron metal tube ( S=25kgf/mm ) |
65x4.5t | |
| (3) Independent R & D software system |
Round tube /stainless steel tube ( S=60kgf/mm ) |
65x1.6t | |
| (4) 1-4 layer die optional |
Square tube/Metal Tube ( S=40kgf/mm ) |
50x50x2.3t | |
| (5) 11 axis full motor type optional |
Round bar ( S=40kgf/mm ) |
33 | |
|
Push-bending type, bending radius7D |
Servo bending axis |
precision |
0.05 |
|
RBE strongly back push bending, minimum bending radius is 1D |
max speed |
180°/sec | |
|
Servo material feeding axis |
precision |
0.05mm | |
|
max speed |
1200mm/sec RBE: 240mm/sec |
||
|
Servo tube rotate axis |
precision |
0.05 | |
|
max speed |
200°/sec |
Features of pipe bending machine
1. Automatic recognition of power in machine and work piece, the processing is both quick and good
2. Slow returning core, boosted by barrow, imporving the apprearance of the angle.
3. The whole operation is in the computer, simple, quick and correct
4. Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation
simple,
quick and correct
5. Rebound test: comparison test on the features of lots of pipe materials
6. Single-step debugging function- a careful observe on the deformation of the pipe material during the trail
manufacture of dies.
7. Automatic drawing of the graphics of dies-clear help to develop new products
8. Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion,
voltage, temperature, oil pressure, and automatically diagnose the troubles
9. Passwords, keys, working hours/ recordings of quantities, are applied to management of production
FAQ
1. How to choose the pipe/tube bending machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2. Do you provide any training to make sure our user can operate the machine very well?
1) We will provide detailed video and instruction book for this machine;
2) We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
4. What kind of solution you can offer to make sure your pipe bending machine can do our job?
1) We will help you confirm the model of our machine according to your offered pipe information.
2) Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3) You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
