| Module No.: | CNC90REM+RBE | Automation: | Automatic |
|---|---|---|---|
| Machine Type: | Pipe And Tube Bending Machine | Available Bending Material: | Round Tube,square Tube,angle Steel And So On |
| Control: | PLC Control With Touch Screen | Axis Servo: | 11 Axis Full Motor Type Optional |
| Highlight: | cnc pipe bender,mechanical pipe bending machine |
||

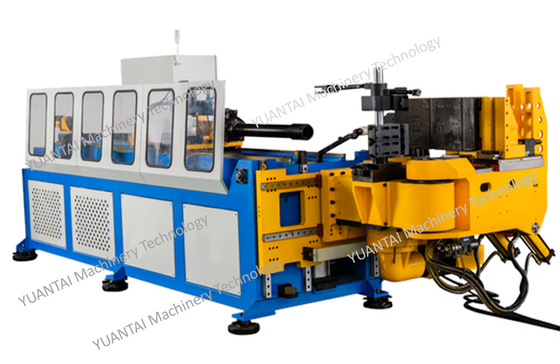

CNC90REM+RBE Tube bender
Our high efficiency 3d cnc automatic hydraulic pipe bending machine with a factory direct price sale in alibaba is using industrial touch screen, with the simple operation interface in English; high precision, high degree of automation and multi-function; each action of machine is controlled by PLC programmer control system or the IPC (Industrial Personal Computer).
|
machine characteristics |
main technical parameter |
||
| (1) Electical servo bending |
Max capacity |
round tube/iron tube ( S=40kgf/mm ) |
89x2t |
| (2) Imported servo motor and reducer |
Round tube/non iron metal tube ( S=25kgf/mm ) |
89x4t | |
| (3) Independent R & D software system |
Round tube /stainless steel tube ( S=60kgf/mm ) |
76x1.8t | |
| (4) 1-6 layer die optional |
Square tube/Metal Tube ( S=40kgf/mm ) |
60x60x2.6t | |
| (5) 11 axis full motor type optional |
Round bar ( S=40kgf/mm ) |
38 | |
|
Push-bending type, bending radius7D |
Servo bending axis |
precision |
0.05 |
|
RBE strongly back push bending, minimum bending radius is 1D |
max speed |
65°/sec | |
|
Servo material feeding axis |
precision |
0.05mm | |
|
max speed |
750mm/sec RBE: 150mm/sec |
||
|
Servo tube rotate axis |
precision |
0.05 | |
|
max speed |
180°/sec |
Adapted material:steel pipe, stainless steel, copper pipe, aluminum pipe etc.
Recommended application industry:
automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on.
Features of pipe bending machine
1. Automatic recognition of power in machine and work piece, the processing is both quick and good
2. Slow returning core, boosted by barrow, imporving the apprearance of the angle.
3. The whole operation is in the computer, simple, quick and correct
4. Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation
simple,
quick and correct
5. Rebound test: comparison test on the features of lots of pipe materials
6. Single-step debugging function- a careful observe on the deformation of the pipe material during the trail
manufacture of dies.
7. Automatic drawing of the graphics of dies-clear help to develop new products
8. Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion,
voltage, temperature, oil pressure, and automatically diagnose the troubles
9. Passwords, keys, working hours/ recordings of quantities, are applied to management of production
Our Company:
Yuantai (Zhangjiagang) Machinery Technology Co., Ltd. is a leading technology enterprise specializing in the manufacture and development of CNC tube bending machines. Many kinds of CNC tube bender developed by the company are in the leading level at home and abroad and even in the world, reaching the world synchronous leading level.
The company independently developed the full-electric CNC tube bending machine control system is in the industry leading level, and obtained dozens of patents. Advanced techniques such as three-dimensional dynamic information simulation design and finite element force analysis are used in mechanical design.
FAQ
1. How to choose the pipe/tube bending machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2. Do you provide any training to make sure our user can operate the machine very well?
1) We will provide detailed video and instruction book for this machine;
2) We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
