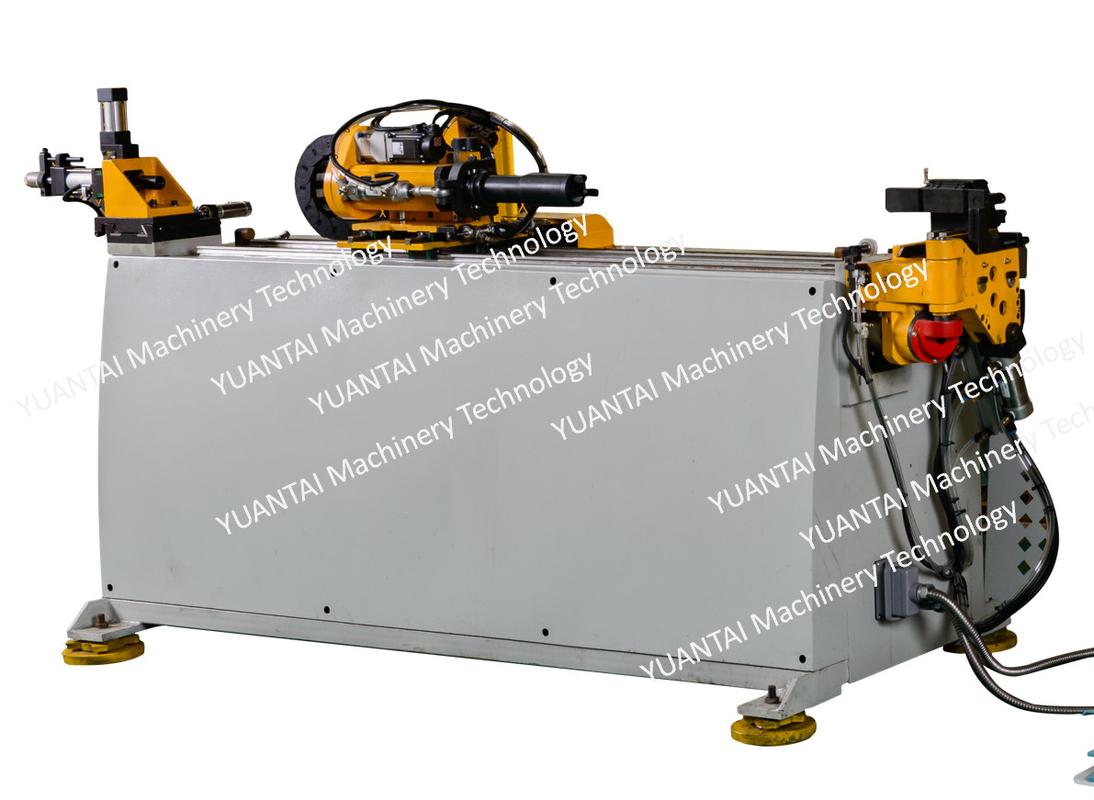

Fitness Equipment Automatic Tube Bending Machine CNC12RED CNC Mandrel Tube Bender

We are old friends withYuantai Machinery Technology Co., Ltd I prefer them due to the good quality with best prcie.What's more,machine running stably and reliably since putting into use, with a zero fault rate.That's awsome

—— KAZUHIRO TSUZAWA

Although we bought machine only twice from the factory,their good configuration of machine and excellent after-sales service give me a deep impression.We'll keep good cooperation relationship in the long future.

—— Tamilmani M

As one of the familiar customer of Yuantai Machinery ,we feel lucky to know this supplier,the boss is very hospitable and he manages this factory so well .I can see the clean workshop and Neat arrangement of machines in this enterprise.

—— TAKAYOSHI TOMONAGA

I'm Online Chat Now

Fitness Equipment Automatic Tube Bending Machine CNC12RED CNC Mandrel Tube Bender

Fitness Equipment Automatic Tube Bending Machine CNC12RED CNC Mandrel Tube Bender
Fitness Equipment Automatic Tube Bending Machine CNC12RED CNC Mandrel Tube Bender

Large Image :  Fitness Equipment Automatic Tube Bending Machine CNC12RED CNC Mandrel Tube Bender

Product Details:
Place of Origin: China
Brand Name: YUANTAI
Certification: CE
Model Number: CNC12RED
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Standard export wooden case or pallet package
Detailed Product Description
Model Number: CNC12RED Max.Tube O.D.(mm): 12
Bending Direction: Right Hand Bending Bending Type: Electric Bending
Tube Bending Layer Quantity: Double Stack CNC/NC: CNC
Highlight:

cnc pipe bender

,

cnc mandrel tube bender

CNC 12RED Tube bender



CNC12RED hybrid electric drive tube bending machine for auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,door&window,exhaust pipe ,nuclear,etc.





Machine characteristic



Main technical parameter


(1) Electrical servo bending

Max bending capacity

Servo tube rotate axis( S=40kgf/mm )

12x1.0t
(2) Imported servo motor and reducer

Round tube /non metal tube( S=25kgf/mm )

12x2.0t
(3) Independent R & D software system

Round tube/stainless steel tube( S=60kgf/mm )

10x1.0t
(4) 1-6 layer die option Square tube/Metal tube( S=40kgf/mm ) 8x8x1.0t
(5) 11 axis full motor type optional round Bar( S=40kgf/mm ) 5


Servo bending axis

precision ±0.05
  Max speed 180°/sec


Servo Material feeding axis

precision 0.05mm
  Max speed 1200mm/sec


Servo tube rotate axis

precision

0.05
  Max speed 300°/sec



Main parameters



Model : Unit CNC12RED
Max. Bending capacity (mild steel>1.5DR) mm 12×2.0
Round tube/stainless steel tube mm 10×1.0
Suqare tube/metal mm 8×1.0
Max. Bend outer diameter for reciprocating feeding(can be customized) mm 10
Bending radius mm 12~55
Bending radius for square tube mm -
Bending angle range degree 190
Tow-layer R max.difference R1~R2 mm 20
Max.effective length over mandrel mm 1000
Workbench height(mold center to ground height) mm 1060
Mold center line height mm 12
Bending (D.O.B)speed deg/sec 360
Bending (D.O.B)accuracy degree ±0.05
Feeding (D.B.B)speed mm/sec 2002.7
Feeding (D.B.B)accuracy mm ±0.05
Tube rotate(P.O.B)speed deg/sec 339.6
Tube rotate(P.O.B)accuracy mm ±0.05
Hydraulic system motor kw -
Total power kw 1.6
Max.pressure kgf/cm² -
Preset pressure kgf/cm² -
Oil tank capacity liter -
Machine size (length*width*height) mm 2000*1100*800
Machine weight kg 430







Advantages:



1. Low cost for operator training,high production effeciency and product uniformity.

2. Drived by electric servo motors.compared with hydraulic drive,it has higher stability and longer lifetime.It is unnecessary to worry about oil-leak or working temperature.

3. Gapless tube bending,with long-time high precision and processing efficiency,easy for operation.It has good compatibility.

4. Small in size,low noise level

5. Low running cost,with best cost performance for tube processing.

6. Widely used in small-diameter tube processing,for example tubes of air conditioner and oil tube for autos

Standard models:1~5 stacks,4~6 servo motors

Advanced motor:11 fully electric servo motors



Applications:



Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger



Features:



1. The electric control system uses famous Japanese controllers,such as servo drivers,servo motors,positioning modules and CPUs manufatured by the Mitsubishi Corporation,and is high in performance and good stability.

2. The Mitsubishi ultra-large CPU can accommodate 400 groups of files for compiling,if necessary,the additional transmission software is bought and installed in the computer,and the documents and files are stored in the hard disk,so that the number of compiling groups is unlimitedly expanded.

3. Industrial-use computer type:the WINDOWS operating system is internally installed,and used together with the Mitsubishi servo system,besides the Mitsubishi servo driving,the convenient file management owned by the WINDOWS operating system is also provided;and the files can be storted in the hard disk or soft disk,so that the compiling groupnumber is unlimitedly expanded.

4. Automatic 3D simulation function for tube-forming is selected as required.

5. An automatic error-fault detecting function is provided,and the errors and faults are displayed on the screen,so that the operator can much easily troubleshoot.
