| MATERIAL: | STEEL AND MOLDING PARTS | COLOR: | WHITE AND YELLOW |
|---|---|---|---|
| Condition: | New Design With Stable Bending Performance | Power: | Big Power For Bending |
| Warranty: | 1 Year | Name: | CNC90-6AMS Tube Bending Machine |
| Voltage: | 380V/50HZ Or Cusomized | Usage: | Stainless Pipe, Carbon Pippe, Coper Or Auliminum Pipe Bending |
| Highlight: | High Pressure exhaust pipe bending machine,Oil exhaust pipe bending machine,Thin Wall exhaust pipe bending machine |
||
exhauted pipe bending machine for stainless pipe CNC90-6AMS High Production Efficiency Low Noise

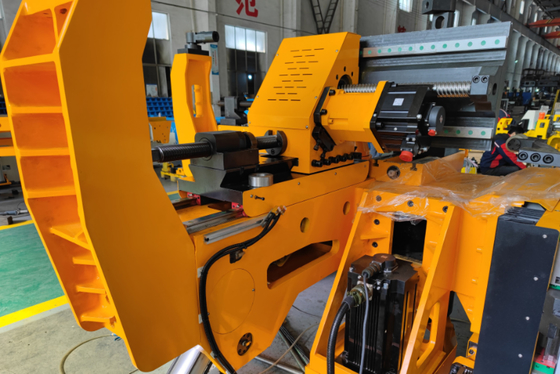

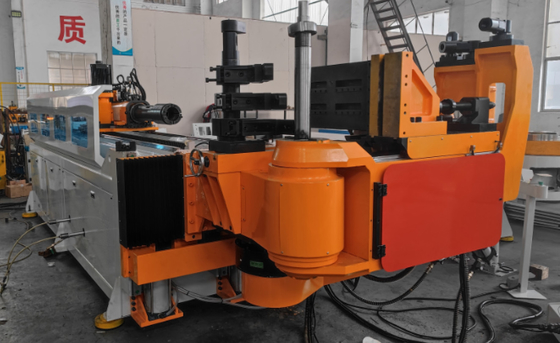

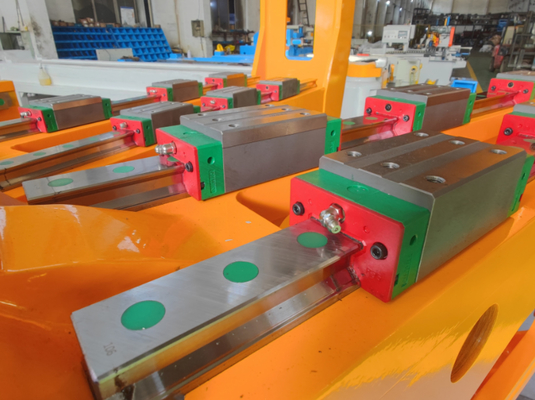

CNC90-6AMS Tube Bender
Machine characteristics:
1. It has movable standard foot start switch, with separated independent controller with emergency stop knob (station) with fan.
2. It has hydraulic circulating oil air cooling system to ensure the working oil temperature is within the standard to ensure the stable operation of the machine (without external cooling tower or pipeline).
3. Oil pump and solenoid valve adopt international standard Japanese brand.
4. Main motor overload protection function, prevent improper setting damage to main motor.
Service conditions of equipment
1.380V+10% , 50Hz±2%
2.Three phase five wire system 380V + 10%, 50Hz ± 2% power supply of power system
3. Working pressure of compressed air p = 0.7MPa
4. Maximum compressed air consumption of main engine 2m3 / h
5.Equipment operating temperature 0-50 ℃
6.Maximum relative humidity 80%
7.Total installed power of equipment 44 kw
8.Overall dimension of equipment (L * w * h) 8900 * 2100 * 18500 mm
Main technical parameters of the equipment CNC90REM-6A
| Maximum applicable bending radius of carbon steel pipe 2D as an example | Φ89×2.5t | |
| Maximum applicable bending radius of carbon steel pipe 2d as an example | Φ63×2t | |
| Maximum applicable bending radius of stainless steel pipe 2D as an example | Φ76×2t | |
| Maximum mandrel length (a) | 5800mm | |
| *Maximum feeding stroke (b) | 4000mm | |
| Feeding mode | Direct or pinch | |
| *Maximum bending diameter | 650mm | |
| Maximum bending angle | 190° | |
| Maximum R difference | 100 | |
| Total tooling height | 360mm | |
Working speed |
Bending speed |
Max.80 degrees / second |
Rotation speed |
Max.120 degrees / second |
|
Feeding speed |
Max.700mm/s |
|
precision |
Bending angle |
±0.05° |
Rotation angle |
±0.05° | |
Feeding length |
±0.05mm | |
Data input mode |
Coordinate value (XYZ) or working value (y.b.c) |
|
| servo motor of axis B(rotation) | Mitsubishi | |
| servo motor of axis C(bending) | Mitsubishi | |
| servo motor of axis Y(feeding) | ||
| servo motor of axis X(horizontal moving) | Mitsubishi | |
| servo motor of axis Z(vertical moving) | Mitsubishi | |
Gross weight of machine (kg) |
8500kg | |
Machine size L.W.H (mm) |
8900×1900×1500 | |
Applications:
Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger
high pressure oil pipe for crane, engineering cars and so on
1. How to choose the pipe/tube bending machine?
You have to inform us following details:
- Max. diameter of the pipe
- Wall thickness of the pipe
- Centrl bending radius (CLR)
- The pipe material
- The drawings if possible, 2D and 3D
2. Do you provide any training to make sure our user can operate the machine very well?
1) We will provide detailed video and instruction book for this machine;
2) We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
4. What kind of solution you can offer to make sure your pipe bending machine can do our job?
1) We will help you confirm the model of our machine according to your offered pipe information.
2) Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3) You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
