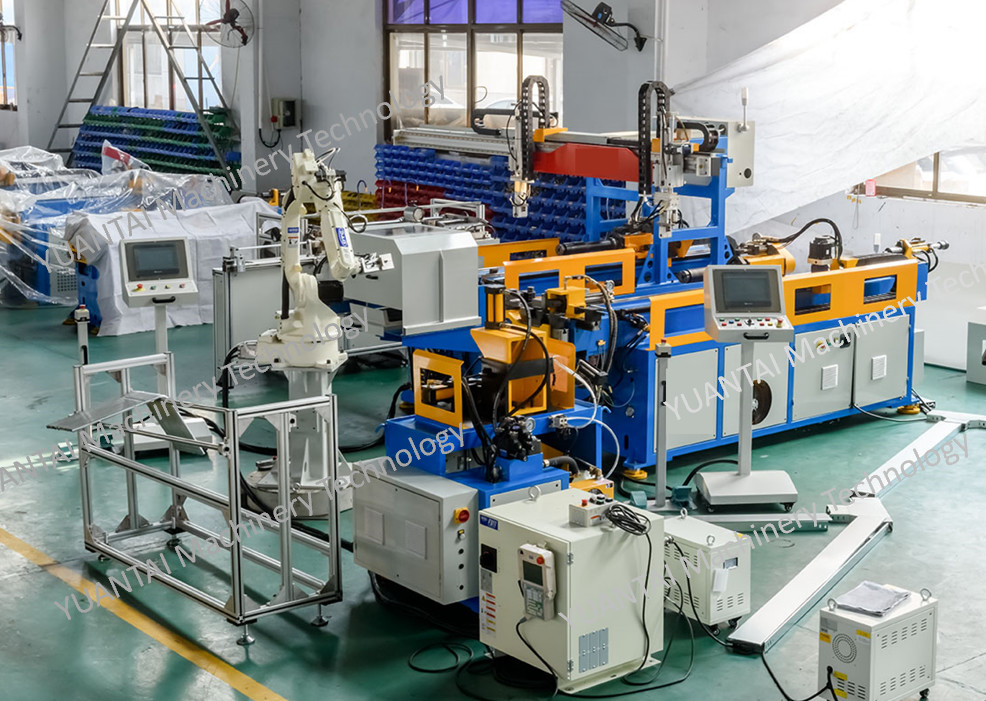

Automatic Feeding, Arc, Elbow And Punching Machine
Automatic one machine non-standard machine
Machine characteristics:
1. Automatic tube bending machine workstation, Tube forming in one time .
2. Reduce labor ,saving labor cost.
3. Two automatic feeding machines each feed the tube bender automatically, and a robot loads and palletizes the two tube benders at the same time.
4. The whole process all is controlled by PLC , with touch screen man-machine interface, the efficiency is improved wholely.
5. Automatic Identification of tube welds to make tube Bend Machine avoid Weld seam.
6. Use Industrial Robot for loading and unloading stacking.
Product parameter:
| machine characteristics | main technical parameter | ||
| (1) Electical servo bending | Max capacity |
round tube/iron tube ( S=40kgf/mm ) |
18x1.6t |
| (2) Imported servo motor and reducer | Round tube/non iron metal tube ( S=25kgf/mm ) |
20x2.0t | |
| (3) Independent R & D software system | Round tube /stainless steel tube ( S=60kgf/mm ) |
18x0.8t | |
| (4) 1-6 layer die optional | Square tube/Metal Tube ( S=40kgf/mm ) |
15x15x1.2t | |
| (5) 11 axis full motor type optional | Round bar( S=40kgf/mm ) | 8 | |
| Max capacity | precision | ±0.05 | |
| max speed | 180°/sec | ||
| Servo material feeding axis | precision | 0.05mm | |
| Max speed | 1200mm/sec | ||
| Servo tube rotate axis | precision | 0.05 | |
| Max speed | 300°/sec |
Recommended application industry:
Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger
Features of pipe bending machine:
1. Automatic 3D simulation function for detecting interferring position is selected as required.
2. All processing data are inputted by the touch screen.
3. Based on the change of materials,each curve is set with a compensation value,a speed and a demoulding gap.
4. Each curve of one tube can be programmed with five action sequences and ten-stage speeds,so that the processing efficiency is improved,and the interference point is reduced.
5. Chinese/English language are switched to display on the touch screen,and customers can also purchase the machine installed with other languages.
6. The feeding mode comprises the clamping feeding mode or the direct feeding mode which is selected as required.
7. The X.Y.Z coordinate can be automatically switched into the Y.B.C processing values.
8. After the data are compiled,the data is protected by a key,so that the data are prevented from any modification.
9. The electric control system is equipped with a heat exchanger for automatic heat dissipation;if necessary,a numerical control type refrigerator can be additionally bought,so that the life span of the electric control system is ensured.
10. An automatic oil charging system is installed to reduce friction of the bending tube.It prolongs the lifetime of the core rod and improves the quality of the bended tube.
