CNC100REMP Tube Bender Multi-Layer Molds Can Be Used With Push-Bend, Suitable For Auto Parts

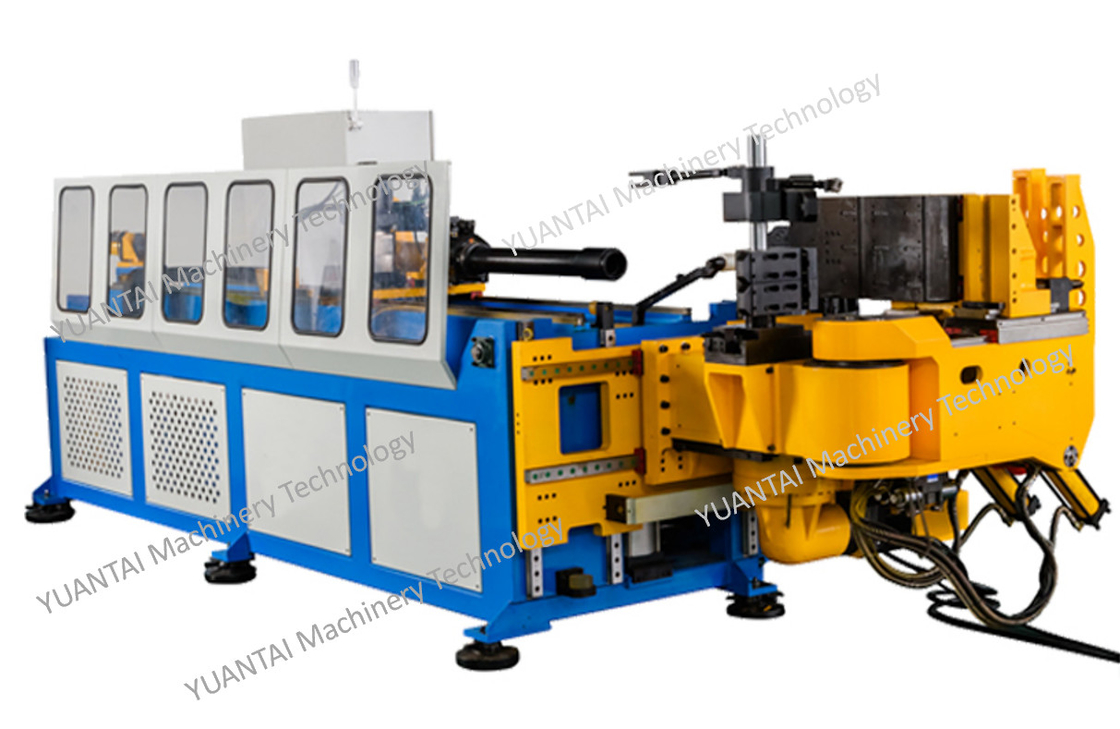

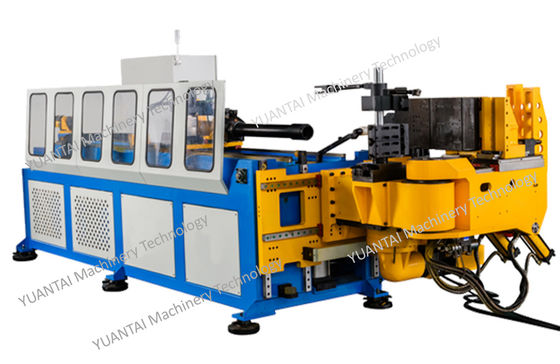

CNC100REMP Tube Bender
The product is controlled by PLC and hydraulically driven. The display operating system is touch-type full Chinese menu. It has prefabrication with various bending angles, Chinese subtitle display and man-machine dialogue operation. It can choose manual, semi-automatic and fully automatic operation modes. The mobile foot switch has both start and stop functions.
Hydraulic system, control system, drive system, display system, etc. all adopt high-reliability imported parts, with high precision, high efficiency, suitable for mass production, with international and domestic advanced level.
Product parameter:
| machine characteristics | main technical parameter | ||
| (1)
Electical servo bending |
Max capacity |
round tube/iron tube ( S=40kgf/mm ) |
100x3.6t |
| (2)Imported servo motor and reducer |
Round tube/non iron metal tube ( S=25kgf/mm ) |
100x6.5t | |
| (3)
Independent R & D software system |
Round tube /stainless steel tube ( S=60kgf/mm ) |
100x2.4t | |
| (4)1-6
layer die optional |
Square tube/Metal Tube ( S=40kgf/mm ) |
70x70x3.5t | |
| (5)11
axis full motor type optional |
Round bar ( S=40kgf/mm ) |
45 | |
| Push-bending type, bending radius7D | Servo bending axis | precision | 0.05 |
| RBE strongly back push bending, minimum bending radius is 1D | max speed | 65°/sec | |
| Servo material feeding axis | precision | 0.05mm | |
| max speed | 650mm/sec | ||
| RBE: 130mm/sec | |||
| Servo tube rotate axis | precision | 0.05 | |
| max speed | 120°/sec |
Adapted material:Steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others.
Application industry:
automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on.
Main features of CNC100REMP pipe bending machine:
