Product Details:
Payment & Shipping Terms:
|
| Maximum Bending Capacity: | 65x2.5mm | Round Tube/stainless Steel Tube: | 65x1.6mm |
|---|---|---|---|
| Square Tube/metal: | 50x2.3mm | Bending Radius: | 30~230mm |
| Bending Radius Range/square Tube: | 35~210mm | Bending Angle Range: | 190degree |
| Highlight: | Stable CNC Tube Bending Machine,Hydraulic CNC Tube Bending Machine,Stable Performance Automatic Tube Bender |
||
CNC65REM+RBE Tube Bender Applicable Material: Stainless Steel Tube

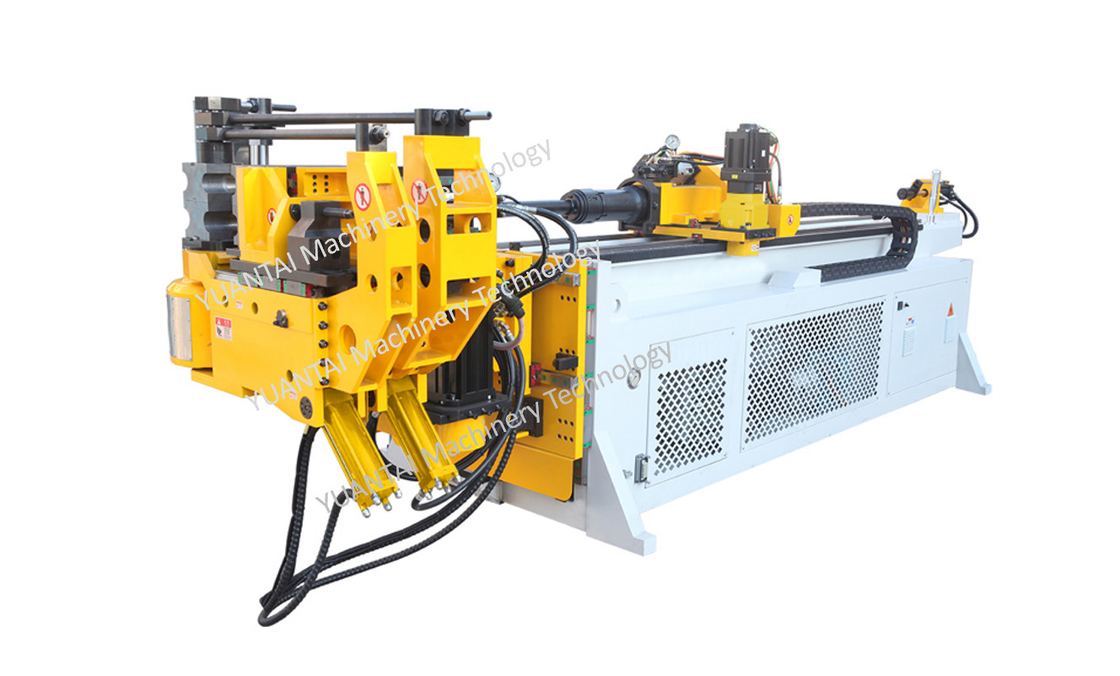

CNC65REM+RBE Tube Bender
Tube bending machine has both left and right bending functions, for the individual tube bending machine will interfere with the workpiece, this machine can be completed in one time; servo independent controlled, all actions can be accurately adjusted in the touch screen, the accuracy is very high. The model has the function of setting mandrel pulling in advance and mandrel automatic lubrication system.
Product parameter:
| Maximum bending capacity | mm | 65x2.5 |
| Round tube/stainless steel tube | mm | 65x1.6 |
| Square tube/metal | mm | 50x2.3 |
| Bending radius | mm | 30~230 |
| Bending radius range/square tube | mm | 35~210 |
| Bending angle range | degree | 190 |
| Hydraulic system motor | kw | 5.5 |
| Total power | kw | 24 |
| Max pressure | kgf/cm² | 140 |
| Preset pressure | kgf/cm² | 100 |
| oil tank capacity | liter | 300 |
| Machine width | mm | 1150 |
| Machine height | mm | 1400 |
| Machine length | mm | 4300 |
| Machine weight | mm | 5800 |
