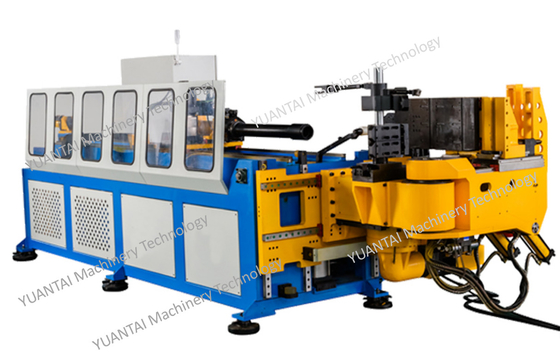

3D Numerical Control Automatic Stainless Exhaust Pipe Bender With Multi Stacks And Electric Guide Die

Large Image : 3D Numerical Control Automatic Stainless Exhaust Pipe Bender With Multi Stacks And Electric Guide Die

Product Details:

Place of Origin:	China
Brand Name:	YUANTAI
Certification:	ISO90001
Model Number:	90REM-6A

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	talking through E-mail
Packaging Details:	wooden
Delivery Time:	4 weeks
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per 45 days

Contact Now

Detailed Product Description

Material:	Stainless Steel	Color:	Blue And Yellow,
Power:	CNC	Material / Metal Processed:	Stainless Steel
Automation:	Automatic	Machine Type:	Pipe And Tube Bending Machine
Highlight:	cnc tube bender , automated pipe bender

3D Numerical Control Automatic Stainless Exhaust Pipe Bender With Multi Stacks And Electric Guide Die

Service conditions of equipment

380V+10% , 50Hz±2%
Three phase five wire system 380V + 10%, 50Hz ± 2% power supply of power system

(2) Working pressure of compressed air p = 0.7MPa
(3) Maximum compressed air consumption of main engine 2m3 / h
(4)Equipment operating temperature 0-50 ℃
(5)Maximum relative humidity 80%

(6)Total installed power of equipment 44 kw

(7) Overall dimension of equipment (L * w * h) 8900 * 2100 * 18500 mm

Technical specifications

Process adaptability

2.2
Main technical parameters of the equipment CNC90REM-6A

Maximum applicable bending radius of carbon steel pipe 1.5D as an example		Φ89×2.0t
Maximum applicable bending radius of carbon steel pipe 1.0d as an example		Φ63×2t
Maximum applicable bending radius of stainless steel pipe 1.5D as an example		Φ76×2t
Maximum mandrel length (a)		5800mm
*Maximum feeding stroke (b)		4000mm
Feeding mode		直送或夹送 Direct or pinch
*Maximum bending diameter		650mm
Maximum bending angle		190°
Maximum R difference		100
Total tooling height		360mm
Working speed	Bending speed	Max.80 degrees / second
	Rotation speed	Max.120 degrees / second
	Feeding speed	Max.1000mm/s
precision	Bending angle	±0.05°
	Rotation angle	±0.05°
	Feeding length	±0.05mm
Data input mode		Coordinate value (XYZ) or working value (y.b.c)
Power of servo motor of axis B(rotation)		1KW
Power of servo motor of axis C(bending)		15KW
Power of servo motor of axis Y(feeding)		7KW
Power of servo motor of axis X(horizontal moving)		1KW
Power of servo motor of axis Z(vertical moving)		5KW
Gross weight of machine (kg)		85000kg
Machine size L.W.H (mm)		8900×1900×1500

List of manufacturers of main electro-hydraulic and pneumatic components

Description

Specification

Brand

(Mitsubishi) + PC base human computer screen

Mitsubishi

Japan

15 "color screen

Advantech

Chinese Taiwan

Servomotor

Mitsubishi

Japan

Servo driver

Mitsubishi

Japan

Reducer

Nabtesco RV

Japan

Photoelectric switch

OMRON

Japan

Low voltage electrical component

Schneider

France

Precision linear guide

HIWIN

Chinese Taiwan

C class precision

Ball screw

HIWIN

Chinese Taiwan

C class precision

Reducer for C axis

Nabtesco rv

Japan

I / O output input board

Self-made
