| Iron: | Mild Steel | Steel: | Hard Steel |
|---|---|---|---|
| Wire: | Cart | Rod: | Curved Rod |
| Highlight: | cnc tube bender,automated pipe bender |
||
1, the principle of rotary head molding machine is to turn the head does not turn the line, the head structure is light, the head does not turn the line to avoid errors caused by small molding to ensure that the production operation is fast and stable.
2, the computer starts up, shutdown speed is fast, simple and convenient to operate, support multi-language operation, the computer interface can adjust the speed and change the program.
3, the configuration adopts imported high-precision high-speed servo motor, imported reducer, stable and durable production speed is more than 30% higher than that of similar domestic counterparts.
4. Wire feeding and rotary arm are separated and matched. When the head is turned, no wire can be turned.
5. The production process can achieve no change in Angle when the Angle is folded at different speeds, and the production stability is better.
6, bearing, gear and other important parts adopt imported parts, quality guarantee 9125 hours, the equipment is durable and reliable.
7, high precision, can do 2.0-12 mm wire diameter range of wire molding products.

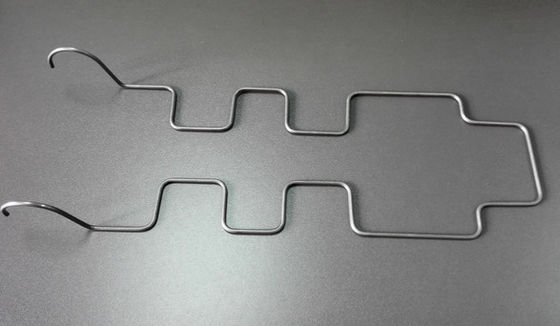

the wire bending machines is largely use in different field, like cart making, spring making and so on.
| No. |
Wire bending machine W10-5A |
Unit |
| 1 | The processing line diameter | φ6.0-φ10.0mm |
| 2 | Number of wire feeding wheels | 3set |
| 3 | Bending precision | ±0.05mm |
| 4 | Feeding speed | m/min500 |
| 5 | Feeding precision | ±0.05mm |
| 6 | Feed servo motor power | 5 kw |
| 7 | Bending servo motor power | 5 kw |
| 8 | Rotation head servo motor power | 5 kw |
| 9 | Head moving servo motor | 1 kw |
| 10 | Cut-off servomotor | 1 kw |
| 11 | Total power | 17 kw |
| 12 | Machine length | 3100mm |
| 13 | width | 1800mm |
| 14 | height | 2500mm |
| 15 | Weight | 3300kg |
