Product Details:
Payment & Shipping Terms:
|
| Material: | Q235 | Automation: | Full Automatic |
|---|---|---|---|
| Application: | Tube | Color: | Blue And Yellow Or As Per Customer Require |
| Highlight: | cnc tube bender,automated pipe bender |
||

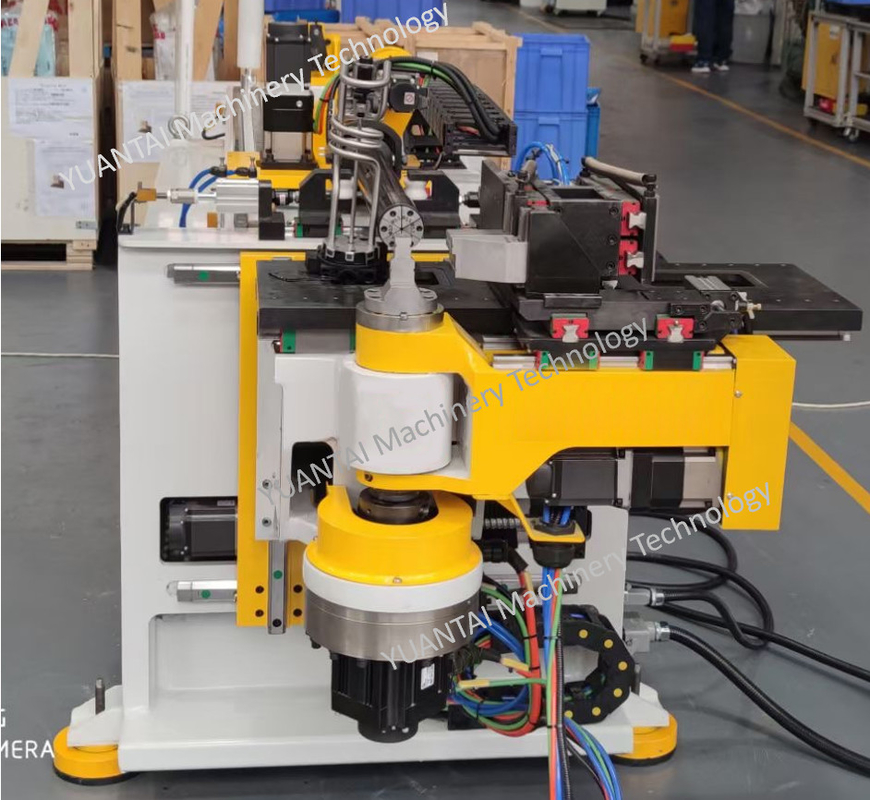

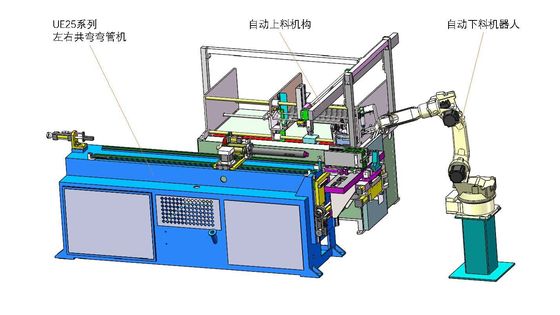

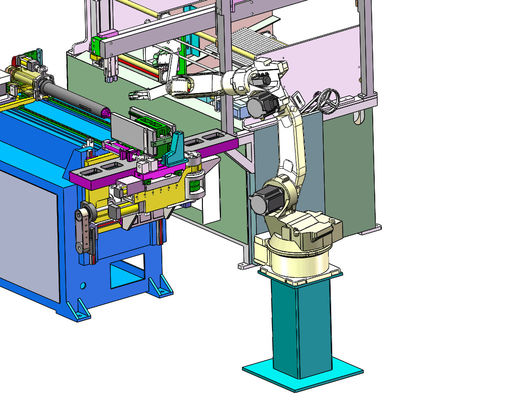

25UE metal headrest tube automatic loading and unloding tube left and right bending lines
Main Confifurations
| Specification | Main Configurations | Unit | 25 | |
| KFFDR | ||||
| MAX. PIPE O.D. ( S=40kgf/mm2 ) | Max. Bending Capacity ( S=40kgf/mm2 ) | mm | 25.1x2.0 | |
| MAX. PIPE O.D./For Repeat Feeding | Max.bending outer diamter when feeding | mm | 25.1 | |
| Round Tube / Non-Ferrous ( S=25kgf/mm2 ) | roung tube/non-iron metal ( S=25kgf/mm2 ) | mm | 25.1x3.0 | |
| Round Tube / Stainless ( S=60kgf/mm2 ) | round bar/stainless steel ( S=60kgf/mm2 ) | mm | 25.1x1.2 | |
| Square tube / Mild Steel ( S=40kgf/mm2 ) | square tube/metai ( S=40kgf/mm2 ) | mm | 20x1.5 | |
| Round Bar / Mild Steel ( S=40kgf/mm2 ) | round bar( S=40kgf/mm2 ) | mm | 14 | |
| MAX. Bending Radius | bending radius range | mm | 15~85 | |
| MAX. Bending Radius / Square tube | bending radius range/square tube | mm | 15~95 | |
| MAX. Bending Angle | bending angle range | degree | 190 | |
| MAX Rolling Capacity( S=40kgf/mm2 ) | max.bending capacity | S=40kgf/mm2 | mm | 25.1x1.8 |
| Rolling Radius | min.bending radius | mm | ≧7D | |
| Round Tube / Non-Ferrous ( S=25kgf/mm2 ) | round tube/non iron metal ( S=25kgf/mm2 ) | mm | 25.1x3.0 | |
| Round Tube / Stainless ( S=60kgf/mm2 ) | round bar/stainless steel( S=60kgf/mm2 ) | mm | 25.1x1.2 | |
| Square tube / Mild Steel ( S=40kgf/mm2 ) | square tube/metai ( S=40kgf/mm2 ) | mm | 20x1.5 | |
| Round Bar / Mild Steel ( S=40kgf/mm2 ) | round bar( S=40kgf/mm2 ) | mm | 14 | |
| MAX. Difference Between Two Radii | max gap between R1-R2 | mm | 40 | |
| MAX. Length Over Mandrel | max piercing core distance | mm | 1500 | |
| Working Height | workbench height (from mould center to ground) | mm | 1100 | |
| Tooling Center Line Height | height of center line of mould | mm | 28 | |
| D.O.B.Speed | bending(D.O.B.)speed | deg/sec | 186 | |
| Accuracy Of D.O.B. | bending(D.O.B.)precision | degree | ±0.05 | |
| D.B.B.Speed | feeding(D.B.B.)speed | mm/sec | 730 | |
| Accuracy Of D.O.B. | feeding(D.B.B.)precision | mm | ±0.05 | |
| P.O.B.Speed | bending(P.O.B.)speed | deg/sec | 320 | |
| Accuracy Of P.O.B. | bending(P.O.B.)precision | degree | ±0.05 | |
| Motor For Hydraulic | hydraulic system motor | kw | 3.0 | |
| Total Power | total power | kw | 9.15 | |
| MAX.Pressure | max.pressure | kgf/cm2 | 70 | |
| Default.Pressure | pre-set pressure | kgf/cm2 | 50 | |
| Hydraulic Tank Capacity | oil tank volumn | liter | 120 | |
| Total Width | machine width | mm | 900 | |
| Total Height | machine height | mm | 1400 | |
| Total Length | machine length | mm | 3000 | |
| Total Weight | machine weight | kgw | 1500 |
| Description for coponnet | Supplier |
| Control PLC |
(MITSUBISHI)
|
| PC | ADVANTECH |
| Software | HT |
| low votalge eletric compoent | Schneider |
| Y feeding servo motor | (MITSUBISHI) |
| Y servo driver | (MITSUBISHI) |
| B rotation servo motor | (MITSUBISHI) |
| B rotation servo driver | (MITSUBISHI) |
| C bending servo motor | (MITSUBISHI) |
| C bending servo driver | (MITSUBISHI) |
| Horizontal moving servo motor | (MITSUBISHI) |
| Horizontal moving servo driver | (MITSUBISHI) |
| Vertical moving servo motor | (MITSUBISHI) |
| Tooling moving servo motor | (MITSUBISHI) |
| Hydraulic electric valve | Seven Ocean |
| The micro switch | OMRON |
| welding detector | Yangming/Taiwan |
| Proximity inductive switch | Yangming/Taiwan |
| Oil pump | Hitech/Taiwan |
| I/O input board | self made |
| linear guide | HIWIN |
| Ball | HIWIN |
| Bearing | NSK |
| Sealing component | Gates, Germany |
| Reducer | Muratar |
