Product Details:
Payment & Shipping Terms:
|
| Steel: | White | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Power: | CNC | Automation: | Automatic |
| Machine Type: | Pipe And Tube Bending Machine | Warranty: | 1 Year |
| Highlight: | cnc tube bender,automated pipe bender |
||

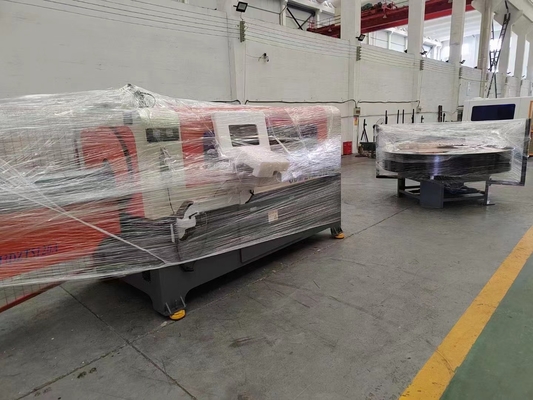

3D CNC Tube Bending Machine Equipped With Adjustable Shock - Proof Foot
Machine characteristics:
1. Alarm sound when abnorma.
2. Standard rear guide holder for backup.
3. Equipped with adjustable shock - proof foot to ensure smooth operation.
4. Equipped with three sizes of piercing core for spare.
5. Accessory wearing parts: a set of proximity induction switch for oil seal (ring) used in the whole machine.
6. Standard tool box with adjustment hand tools and Chinese operation manual
| machine characteristics | main technical parameter | ||
| (1) Electical servo bending | Max capacity | round tube/>1.5DR low carbon steel ( S=40kgf/mm ) | 18x1.6t |
| (2) Imported servo motor and reducer | Round tube/non iron metal tube( S=25kgf/mm ) | 20x2.0t | |
| (3) Independent R & D software system | Round tube /stainless steel tube( S=60kgf/mm ) | 18x0.8t | |
| (4) 1-5 layer die optional | Square tube/Metal Tube( S=40kgf/mm ) | 15x1.2t | |
| (5) 11 axis full motor type optional | |||
| Push-bending type, bending radius7D | Servo bending axis | precision | ±0.05 |
| max speed | 180°/sec | ||
| Servo material feeding axis | precision | ±0.05mm | |
| max speed | 1200mm/sec | ||
| Servo tube rotate axis | precision | ±0.05 | |
| max speed | 300°/sec |
