Product Details:
Payment & Shipping Terms:
|
| Module No.: | MC315AC | Automation: | Semi Automatic |
|---|---|---|---|
| Compressed Air: | 0.4-0.6MPa | Suitable Saw Blade: | Outer Diameter 250/200/315mm |
| Power: | Pneumatic | Usage: | Tube Cuttings |
| Product Name: | Tube Cutting Machine | ||
| Highlight: | tube sawing machines,aluminum cutting machine |
||

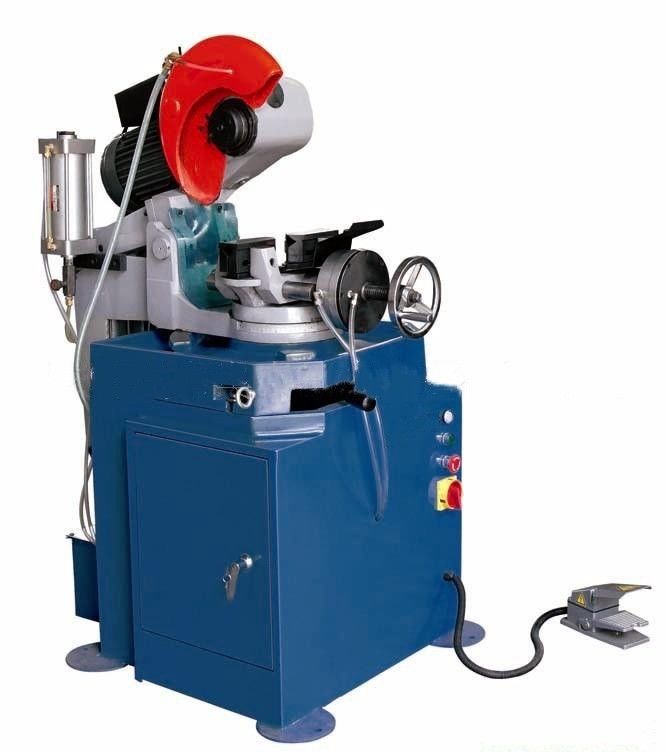

MC315AC Pneumatic semi-auto tube cutting machine tube sawing machine
| Machine characteristic |
| (1) High strength machine head |
| (2) Clamping pneumatically ,feeding knife automatically |
| (3) High Performance worm gear transmission |
| (4) The machine head can turn left and right with 45° rotation |
| Main technical paramerer | ||
| Sawing ability | Round tube | Φ100(90°)/Φ80(45°) |
| Round bar | Φ45(90°)/Φ40(45°) | |
| Square tube | 90x90(90°)/80x80(45°) | |
| Square bar | 80x90(90°)/80x80(45°) | |
| Suitable saw blade | High speed steel saw blade | out diameter 250/200/315mm |
| Compressed air | 0.4-0.6MPa |
Applications:
metal tubes such as stainless steel,iron,aluminum,carbon steel,brass and so on .
Features
1. vertical slideway for advanced and retreat blade up and down.Cutting feed is steady and cutting tools are of long use life.High precision of saw cutting.
2. European design .multiple group of gear transmission is suitable to heavy cutting with steady precision
3. elaborate design of material feed system.The length of feed material can be set as 6-640m/mz(material feed can be divided into three times)
4. elaborate design of material feed floating system so as not to damage the surface of work piece and with high precision of material feed.
5. special main clamp design,the strength is solid
6. Slideway automatically add oil for lubricating,long use life of machine
7. Use PLC controller,no connected point,no fault and easy for maintenance
8. Cooling liquid automation circulation to ensure the smoothness of cutting surface of work piece.
9. centralized control button.Easy and simple operation.
10. Equipped with electric saw protection operation.
11. Equipped with electric saw cutting number setting and total number
12. Automatic stop when without material
13. Saw pieces are centralized for disposal which is convenient and clean
14. Digital displayer,easy fast and exact adjustment of length.
