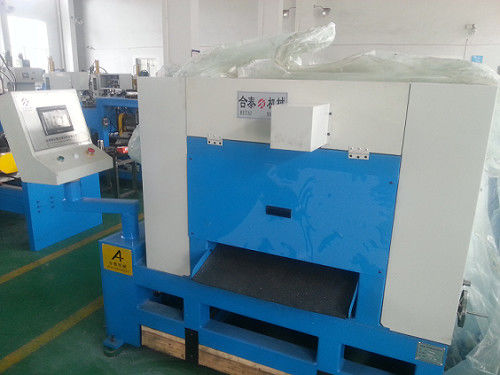

Monoblock Forming Cutting Chamfering Machine Large Capacity HT-50CNC-EF

Advantages:

1. Mitsubishi PLC numerical control system imported from Japan and the precision ball screw imported from Taiwan to control the tool feeding. It has the advantages of high precision, high speed and high smoothness of the workpiece.

2. Dual pneumatic manipulator gantry structure is used to construct the same action for feeding and discharging, and scrap iron is discharged separately from qualified workpieces (to change the defect of mixing old workpieces with scrap iron in the same way).

3. The clamping mechanism is designed with one-sided fixed structure. The chamfering center is stable and reliable.

4. Precision linear guideway guided rack drive is used for left and right translation, which is stable, reliable and accurate in concentric positioning.

5. The chamfer part is equipped with strong compressed gas chip blowing and centralized recovery.

6. Automated monomer separation with automatic storage.

7. The machine is a closed structure with transparent observation window and maintenance window.

8. Adjusting the hidden installation of rack with patent design can effectively prevent the invasion of water and iron chips.

9. slideway automatic oil lubrication, long machine life.

10. Use PLC and touch screen control, no contact, no fault, easy maintenance.

11. man-machine interface can display various electronic contacts, easy to troubleshoot.

12. Configuration of electronic processing quantity setting and counting quantity.

13. Sawdust centralized treatment is convenient and clean.

Application

Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger

Features

1. Automatic 3D simulation function for detecting interferring position is selected as required.

2. All processing data are inputted by the touch screen

3. Based on the change of materials,each curve is set with a compensation value,a speed and a demoulding gap.

4. Each curve of one tube can be programmed with five action sequences and ten-stage speeds,so that the processing efficiency is improved,and the interference point is reduced.

5. Chinese/English language are switched to display on the touch screen,and customers can also purchase the machine installed with other languages

6. The feeding mode comprises the clamping feeding mode or the direct feeding mode which is selected as required.

7. The X.Y.Z coordinate can be automatically switched into the Y.B.C processing values

8. After the data are compiled,the data is protected by a key,so that the data are prevented from any modification.

9. The electric control system is equipped with a heat exchanger for automatic heat dissipation;if necessary,a numerical control type refrigerator can be additionally bought,so that the life span of the electric control system is ensured.

10. An automatic oil charging system is installed to reduce friction of the bending tube.It prolongs the lifetime of the core rod and improves the quality of the bended tube.
