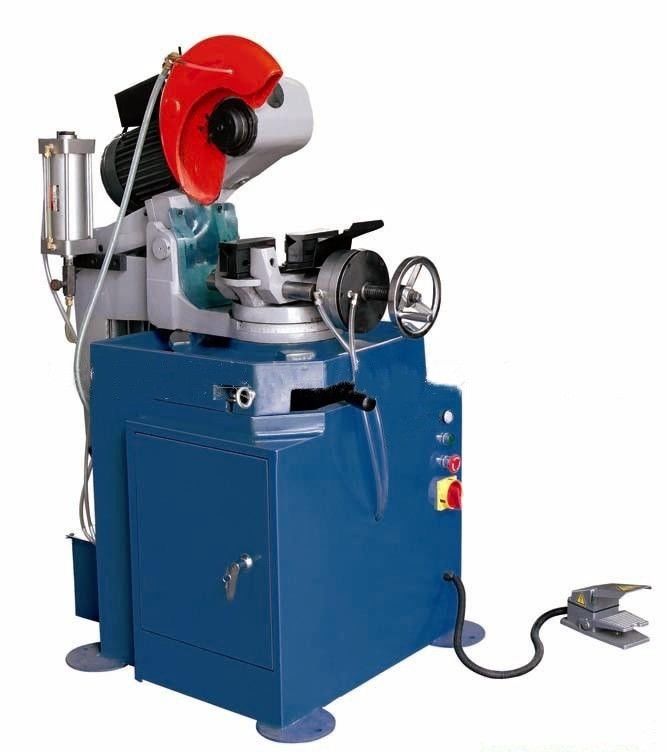

High Accuracy Automated Tube Cutting Machine MC315AC Steel Pipe Cutting Machine

Large Image : High Accuracy Automated Tube Cutting Machine MC315AC Steel Pipe Cutting Machine

Product Details:

Place of Origin:	China
Brand Name:	Y&T
Certification:	CE
Model Number:	MC315AC

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiatable
Packaging Details:	Standard export wooden case or pallet package

Contact Now

Detailed Product Description

Module No.:	MC315AC	Machine Weight:	240Kg
Compressed Air:	0.4 ~036MPa	Available Saw Blade Size:	Outer Diameter 250-315mm
Material Feeding Precision:	±0.05mm	Usage:	Tube Cuttings
Highlight:	tube sawing machines , aluminum cutting machine

315AC metal circular sawing machine

The 315AC metal circular sawing machine is a semi-automatic sawing machine that can cut carbon steel, stainless steel, copper, aluminum and other pipe profiles of various cross-section shapes, and is also suitable for sawing bars. When sawing, except for manual feeding according to the required length (limited position), the other workpieces are clamped, the saw is cut, the knife is cut off, and the clamp is released automatically. The machine tool has the characteristics of light operation, low noise, no dust pollution, good sawing quality, no burr inside and outside the port, high production efficiency, and can be cut at various angles. It is favored and praised by users.

main parameter
Mainframe Motor	1.8/1.3KW2/4P2Y/ 380V/220V
Voltage	380V50HZ
Cooling pump motor	40W
Available Saw Blade Size	2P:96r/min; 4P:48r/min
Available Saw Blade Size	outer diameter 250-315mm
Compressed air	0.4 ~036MPa
Machine weight	240Kg

Applications:

Tube cuttings for Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger

Features
1. vertical slideway for advanced and retreat blade up and down.Cutting feed is steady and cutting tools are of long use life.High precision of saw cutting.
2. European design .multiple group of gear transmission is suitable to heavy cutting with steady precision
3. elaborate design of material feed system.The length of feed material can be set as 6-640m/mz(material feed can be divided into three times)
4. elaborate design of material feed floating system so as not to damage the surface of work piece and with high precision of material feed.
5. special main clamp design,the strength is solid
6. Slideway automatically add oil for lubricating,long use life of machine
7. Use PLC controller,no connected point,no fault and easy for maintenance
8. Cooling liquid automation circulation to ensure the smoothness of cutting surface of work piece.
9. centralized control button.Easy and simple operation.
10. Equipped with electric saw protection operation.
11. Equipped with electric saw cutting number setting and total number
12. Automatic stop when without material
13. Saw pieces are centralized for disposal which is convenient and clean
14. Digital displayer,easy fast and exact adjustment of length.
