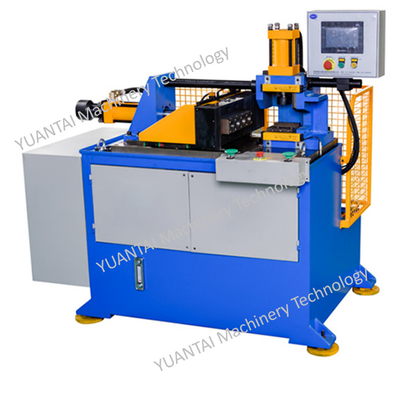

High Speed 30T Tube End Forming Machine Stable Tube End Forming Equipment

TM-30-4/6 Station tube end forming machine (30T type)

Advantages:

1. Low cost for operator training,high production effeciency and product uniformity.

2. Drived by electric servo motors.compared with hydraulic drive,it has higher stability and longer lifetime.It is unnecessary to worry about oil-leak or working temperature.

3. Gapless tube bending,with long-time high precision and processing efficiency,easy for operation.It has good compatibility.

4. Small in size,low noise level

5. Low running cost,with best cost performance for tube processing.

6. Widely used in small-diameter tube processing,for example tubes of air conditioner and oil tube for autos

Standard models:1~5 stacks,4~6 servo motors

Advanced motor:11 fully electric servo motors

Applications:

Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger

Features

1. The electric control system uses famous Japanese controllers,such as servo drivers,servo motors,positioning modules and CPUs manufatured by the Mitsubishi Corporation,and is high in performance and good stability.

2. The Mitsubishi ultra-large CPU can accommodate 400 groups of files for compiling,if necessary,the additional transmission software is bought and installed in the computer,and the documents and files are stored in the hard disk,so that the number of compiling groups is unlimitedly expanded.

3. Industrial-use computer type:the WINDOWS operating system is internally installed,and used together with the Mitsubishi servo system,besides the Mitsubishi servo driving,the convenient file management owned by the WINDOWS operating system is also provided;and the files can be storted in the hard disk or soft disk,so that the compiling groupnumber is unlimitedly expanded.

4. Automatic 3D simulation function for tube-forming is selected as required.

5. An automatic error-fault detecting function is provided,and the errors and faults are displayed on the screen,so that the operator can much easily troubleshoot.

6. The machine can be connected with a printer so as to print the data displayed on the screen.

7. Communication interface can be installed as required,which can be connected to our company.Our engineer will provided remote service of real-time monitoring,data updating,failure checking and so on.

8. A feeding cart’s feeding position,safety position,wheel mode interfering position and guided mode interfering position are set,so that a hand wheel pulse wave generator can be finely tuned,the position can be automatically remembered,and the error caused by the manual measurement and the loss caused by the feeding cart bumping the machine are eliminated

9. The feeding shaft will perform automatic detection before acting,so that the feeding shaft is avoided from bumping the machine

10. When the curves are tested,analytical actions can be used,the actions are modified by the careful observation of the interference points ,so that the efficiency is improved.
