Product Details:
Payment & Shipping Terms:
|
| Module No.: | NC219 | CNC/NC: | NC |
|---|---|---|---|
| Precision: | ±0.15° | Max Bending Speed: | 6°/sec |
| Application: | Construction Projects | Machine Type: | Pipe And Tube Bending Machine |
| Highlight: | heavy duty pipe bending machine,3d tube bending machine |
||
NC219 Tube bender
Bending part automatic
Equipped with hydraulic system--economical way
Stable performance
Easy operation
Cost-effictive machine
|
technical parameter |
technical parameter |
NC219 |
|
Max capacity |
round tube/Iron tube( S=40kgf/mm ² ) |
Φ219x8.0t |
|
Round Tube/Non iron metal ( S=25kgf/mm ² ) |
Φ219x13.0t |
|
|
Round tube/stainless steel tube( S=60kgf/mm ² ) |
Φ219x5.0t |
|
|
Square tube/Metal tube( S=40kgf/mm ² ) |
140x140x8.0t |
|
|
round Bar ( S=40kgf/mm ² ) |
Φ100 |
|
|
Oil pressure bending |
precision |
±0.15° |
|
max speed |
6°/sec |
Main features
Operate by NC control unit, imported electric and hydraulic elements.
English showing and conversational operation.
It can adjust speed in each bend and the bending precision is high.
16 groups of bending information can be stored. Multiple angles can be finished once.
The foot switches with functions of automatic start, emergency stop and resuming.The safety is high.
Delicate design of the bending head makes the bending space large.

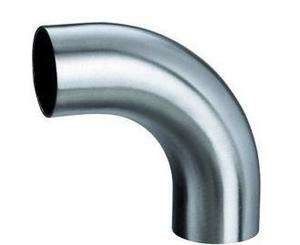

Suitable Materials: Steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others.
Our Company:
Yuantai (Zhangjiagang) Machinery Technology Co., Ltd. is a leading technology enterprise specializing in the manufacture and development of CNC tube bending machines. Many kinds of CNC tube bender developed by the company are in the leading level at home and abroad and even in the world, reaching the world synchronous leading level.
The company independently developed the full-electric CNC tube bending machine control system is in the industry leading level, and obtained dozens of patents. Advanced techniques such as three-dimensional dynamic information simulation design and finite element force analysis are used in mechanical design.
FAQ
1. How to choose the pipe/tube bending machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2. Do you provide any training to make sure our user can operate the machine very well?
1) We will provide detailed video and instruction book for this machine;
2) We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
