Module No.:	CNC65RES+RBE+TB	Max Bending Diameter:	500mm
Max Bending Angle:	190°	Accuracy:	±0.05°
Gross Weight Of Machine:	4800kg	Machine SizeL.W.H(cm):	5300×1500×1080
Highlight:	automatic pipe bending machine , automated pipe bender

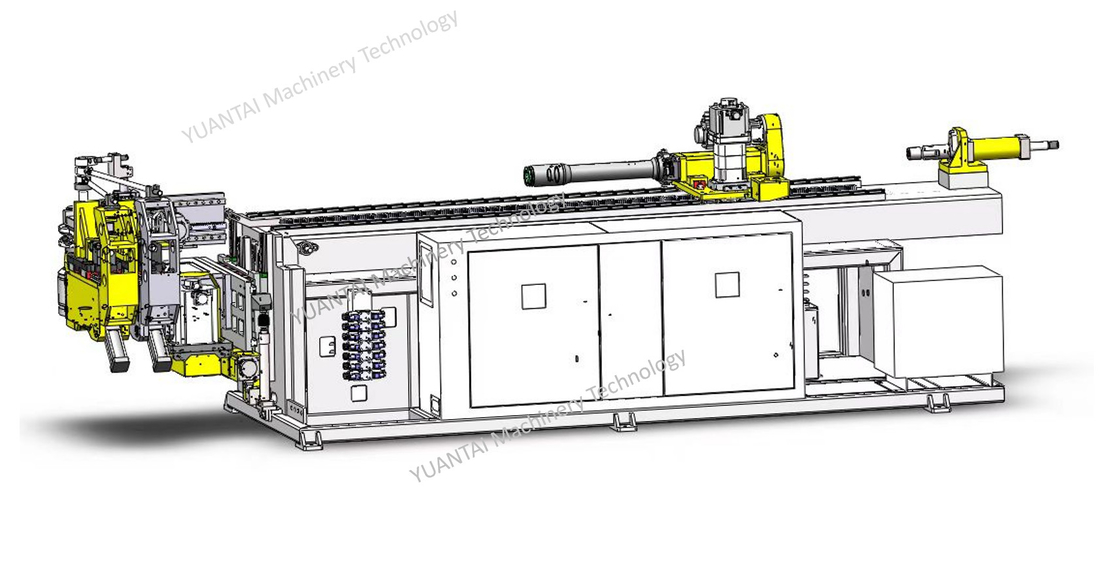

Oil-electrical hybrid drive tube bender CNC65RES+RBE+TB tail bend extension booster bending machine (patent model)

Technical parameters-YUANTAI tube bending machine

Take Max bending radius of carbon steel tube is 1.5 for example		￠65×2.5t
Take Max bending radius of stainless steel tube is 1.5 for example		51×2.5t
Max length of piercing core(a)		4600mm
Max feeding stroke(b)		3600mm
Feeding way		One time feeding or multiple feeding
Max bending diameter		500mm
Max bending angle		190°
Configurable bending quantity of each pipe fitting		100 bends
Working speed	Tube bending speed	Max90deg/sec
	Speed of tube rotating	Max.120deg/sec
	Feeding speed	Max.500mm/sec
Accuracy	Tube bending angle	±0.05°
	Tube rotating angle	±0.05°
	Feeding length	±0.1mm
Data input mode		Coordinate value(XYZ)or working value(Y.B.C)
Motor power of tube rotating servo		750W
Motor power of bending servo		11KW
Motor power of feeding servo		5KW
Power of Servo motor of Mold vchanging		---
Power of Servo motor of Mold moving		---
Hydraulic motor horsepower		5KW
Gross weight of machine(kg)		4800kg
Machine sizeL.W.H(cm)		5300×1500×1080

Main purchased parts list

Name of part	Brand /Origin
PLC	MITSUBISHI)/Japan
10″Color screen	Advantech/Taiwan
Servo motor of feeding electronic	MITSUBISHI/Japan
Servo drive of feeding electronic	MITSUBISHI/Japan
Servo motor of bending electronic	MITSUBISHI/Japan
Servo drive of bending electronic	MITSUBISHI/Japan
Servo motor of tube-rotating electronic	MITSUBISHI/Japan
Servo drive of bending electronic	MITSUBISHI/Japan
Optoelectronic switch	OMRON/Japan
reducer	Teijin/Japan
Bearing	NSK/Japan
High pressure oil pipe	LIANHHUI/China
Sealing element	GATES/Germany
Hydrulic solenoid valve	SEVEN OCEAN/Taiwan
Hydraulic bump	HYTAC/Taiwan
I/O input board	Self-made

CNC65RES+RBE function discription

3D CNC automatic bending machine,It conforms to the high rigidity mechanical structure design and precision techonology level of principle of dynamic mechanics,under both structural strength,the simple design of bending hand and bending machine head provides the maximun bending space,making the interference range of machine minimum.Equipped with automatic procedure operation system, ensuring that all kinds of different steel tube bending work can easily meet the requirements of mass production and high precision

BE is High-end model specially developed for high bending technology requirements,Special feeding seat mechanism with patented gear change design.It can easily perform bending in limit conditions that cannot be reached by general models, such as minimal bending radius, thin thickness.
Proportional servo control is adopted for bending and boosting, which further improves the precision and efficiency guarantees the consistency of product
