Product Details:
Payment & Shipping Terms:
|
| Module No.: | CNC25UE | Automation: | Automatic |
|---|---|---|---|
| Material / Metal Processed: | Metal Carbon Steel,iron,stainless Steel Pipes | Max Bending Speed: | 180 Deg/s |
| Tube Bending Precision: | 0.05 | Type: | CNC Pipe Bending Machine |
| Highlight: | cnc tube bender,automatic pipe bending machine |
||

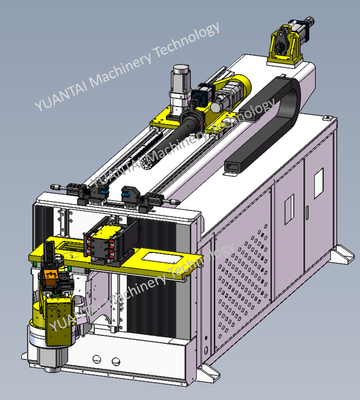

CNC25UE Tube bender
Tube bending machine has both left and right bending functions, for the individual tube bending machine will interfere with the workpiece, this machine can be completed in one time; CNC8 axis is servo independent controlled, all actions can be accurately adjusted in the touch screen, the accuracy is very high. The model has the function of setting mandrel pulling in advance and mandrel automatic lubrication system.
| Max bending capacity (carbon steel as example) | mm | 20*1.5 | 25*1.5 | 38*1.5 |
| Max bending Radius | mm | 70 | 150 | 200 |
| Max Bending degree | degree | 190 | 195 | 195 |
| clamping distance | mm | 40 | 100 | |
| material Feeding precision | mm | 0.1 | 0.1 | 0.1 |
| Tube bending precision | degree | 0.1 | 0.1 | 0.1 |
| Rotate precision | deg/sec | 0.1 | 0.1 | 0.1 |
| Tube bending speed | deg/s | 180 | 120 | 180 |
| Material Feeding speed | mm/sec | 1200 | 1200 | 1200 |
| Rotate speed | deg/s | 360 | 220 | 360 |
| Total power | kw | 7 | 11 | 15 |
| Air resource | Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Power | v/Hz | 380/50 | 380/50 | 380/50 |
| Solenoid valve voltage | V | 24 | 24 | 24 |
Specification
1. tube bending machine
2. High precision,Wide application
3. CE Certification, ISO Certification
4. High performance and easy to operate
5. Digital display CNC and NC
Applications:
Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger
Our Company:
Yuantai (Zhangjiagang) Machinery Technology Co., Ltd. is a leading technology enterprise specializing in the manufacture and development of CNC tube bending machines. Many kinds of CNC tube bender developed by the company are in the leading level at home and abroad and even in the world, reaching the world synchronous leading level.
The company independently developed the full-electric CNC tube bending machine control system is in the industry leading level, and obtained dozens of patents. Advanced techniques such as three-dimensional dynamic information simulation design and finite element force analysis are used in mechanical design.
FAQ
1. How to choose the pipe/tube bending machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2. Do you provide any training to make sure our user can operate the machine very well?
1) We will provide detailed video and instruction book for this machine;
2) We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
