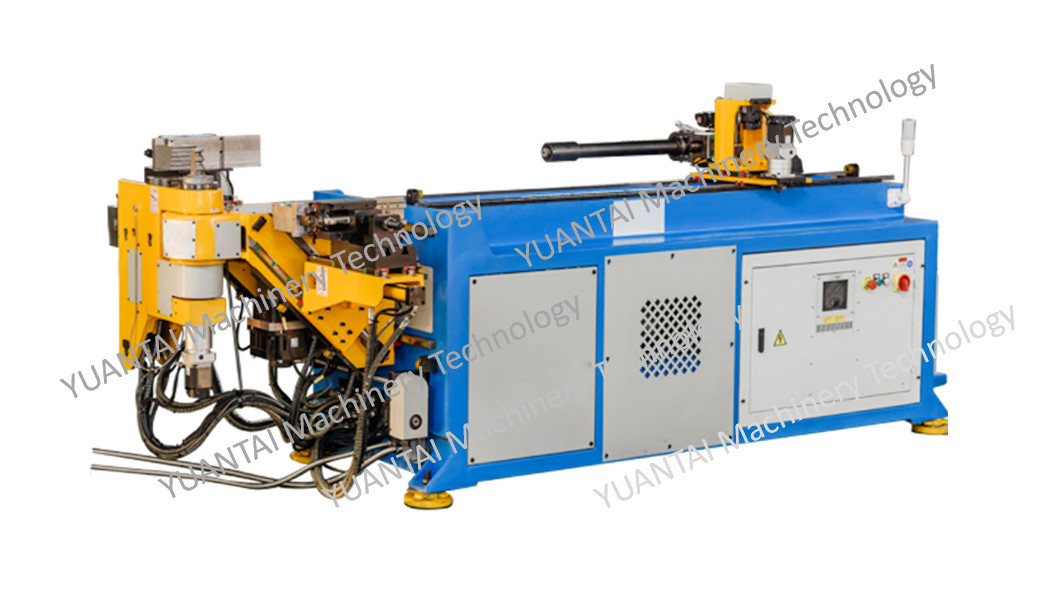

Automatic Lubricate CNC Tube Bending Machine 30UE Max 195 Bending Degree

Automatic Lubricate  CNC Tube Bending Machine 30UE Max 195 Bending Degree
Automatic Lubricate  CNC Tube Bending Machine 30UE Max 195 Bending Degree

Large Image :  Automatic Lubricate CNC Tube Bending Machine 30UE Max 195 Bending Degree

Product Details:
Place of Origin: China
Brand Name: YUANTAI
Certification: CE
Model Number: CNC30UE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Standard export wooden case or pallet package
Detailed Product Description
Module No.: CNC30UE Automation: Automatic
Material / Metal Processed: Metal Carbon Steel,iron,stainless Steel Pipes Max Bending Speed: 180 Deg/s
Tube Bending Precision: 0.1 Degree Solenoid Valve Voltage: 24V
Highlight:

cnc tube bender

,

automated pipe bender

CNC30UE Tube bender



Tube bending machine has both left and right bending functions, for the individual tube bending machine will interfere with the workpiece, this machine can be completed in one time; CNC8 axis is servo independent controlled, all actions can be accurately adjusted in the touch screen, the accuracy is very high. The model has the function of setting mandrel pulling in advance and mandrel automatic lubrication system.



Max bending capacity (carbon steel as example) mm 20*1.5 20*1.5 38*1.5
Max bending Radius mm 70 150 200
Max Bending degree degree 190 195 195
clamping distance mm 40 100
material Feeding precision mm 0.1 0.1 0.1
Tube bending precision degree 0.1 0.1 0.1
Rotate precision deg/sec 0.1 0.1 0.1
Tube bending speed deg/s 180 120 180
Material Feeding speed mm/sec 1200 1200 1200
Rotate speed deg/s 360 220 360
Total power kw 7 11 15
Air resource Mpa 0.4-0.6 0.4-0.6 0.4-0.6
Power v/Hz 380/50 380/50 380/50
Solenoid valve voltage V 24 24 24



Main features of CNC25XE pipe bending machine:

  1. Operate by CNC control unit, imported electric and hydraulic elements.
  2. English showing and conversational operation.
  3. It can adjust speed in each bend and the bending precision is high.
  4. 16 groups of bending information can be stored. Multiple angles can be finished once.
  5. The foot switches with functions of automatic start, emergency stop and resuming.The safety is high.
  6. Delicate design of the bending head makes the bending space large.
  7. Suitable Materials: Steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others.



Applications:



Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger



Our Company:



Yuantai (Zhangjiagang) Machinery Technology Co., Ltd. is a leading technology enterprise specializing in the manufacture and development of CNC tube bending machines. Many kinds of CNC tube bender developed by the company are in the leading level at home and abroad and even in the world, reaching the world synchronous leading level.

The company independently developed the full-electric CNC tube bending machine control system is in the industry leading level, and obtained dozens of patents. Advanced techniques such as three-dimensional dynamic information simulation design and finite element force analysis are used in mechanical design.





FAQ



1. How to choose the pipe/tube bending machine?



You have to inform us following details:

- Max. outside diameter

- Wall thickness range

- Bending radius (CLR)

- The pipe material

- The drawings if possible



2. Do you provide any training to make sure our user can operate the machine very well?



1) We will provide detailed video and instruction book for this machine;

2) We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!



3. How long warranty can you provide?



Our machine warranty is one year,and we use all the stable compoenents with long working life!

And we can also send our technician to do the after-sale service in client's factory!
