Product Details:
Payment & Shipping Terms:
|
| Module No.: | CNC15REX | CNC/NC: | CNC |
|---|---|---|---|
| Precision: | ±0.05 | Available Bending Material: | Metal Carbon Steel,iron,stainless Steel Pipes |
| Advantage: | Efficiency And Accuracy | Application: | Furniture,car,bike And So On |
| Highlight: | automatic pipe bending machine,automated pipe bender |
||

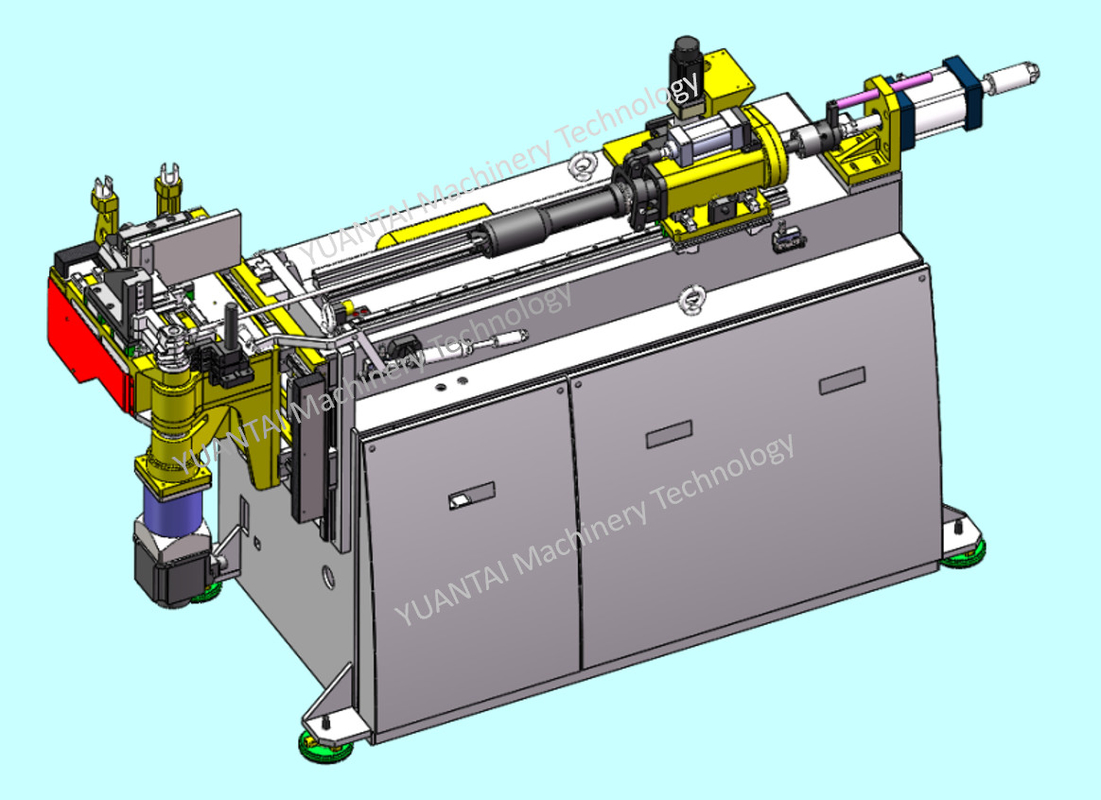

CNC15REX Tube bender
Main features:
Adapted material:steel pipe, stainless steel, copper pipe, aluminum pipe etc.
Recommended application industry:
automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on.
| CNC15E | |||
| Machine characteristic | Main technical parameter | ||
| (1) Electrical servo bending |
Max bending capacity |
Round tube/iron tube ( S=40kgf/mm ) | 15x1.6t |
| (2) Imported servo motor and reducer | Round tube /non metal tube( S=25kgf/mm ) | 15x2.0t | |
| (3) Independent R & D software system | Round tube/stainless steel tube( S=60kgf/mm ) | 15x0.8t | |
| (4) 1-6 layer die optional | Square tube/Metal tube( S=40kgf/mm ) | 10x10x1.2t | |
| (5) 11 axis full motor type optional | Round Bar ( S=40kgf/mm ) | 8 | |
| Servo bending axis | Precision | 0.05 | |
|
Max speed |
180°/sec | ||
| Servo Material feeding axis |
Precision |
0.05mm | |
|
Max speed |
1200mm/sec | ||
| Servo tube rotate axis |
precision |
0.05 | |
| Max speed | 300°/sec | ||
Applications:
Auto,motorbike,aircraft,bicycle,kids bike,fitness equipment,furniture,outdoor equipment,air conditioner,food machinery,nulcear tube such as reactor,evaporator and heat exchanger
Our Company:
Yuantai (Zhangjiagang) Machinery Technology Co., Ltd. is a leading technology enterprise specializing in the manufacture and development of CNC tube bending machines. Many kinds of CNC tube bender developed by the company are in the leading level at home and abroad and even in the world, reaching the world synchronous leading level.
The company independently developed the full-electric CNC tube bending machine control system is in the industry leading level, and obtained dozens of patents. Advanced techniques such as three-dimensional dynamic information simulation design and finite element force analysis are used in mechanical design.
FAQ
1. How to choose the pipe/tube bending machine?
You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible
2. Do you provide any training to make sure our user can operate the machine very well?
1) We will provide detailed video and instruction book for this machine;
2) We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!
3. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
