Chair bending CNC38 tube bending machine for furniture pipe bending

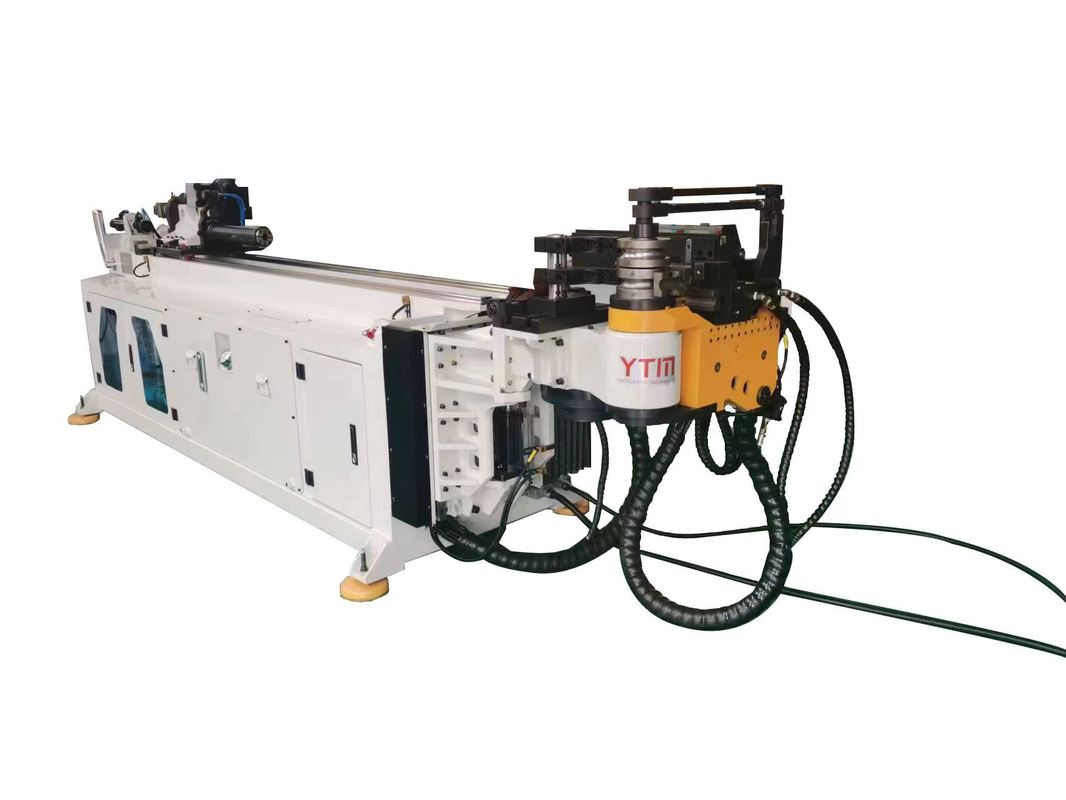

Large Image : Chair bending CNC38 tube bending machine for furniture pipe bending

Product Details:

Place of Origin:	CHINA
Brand Name:	YTMT
Certification:	ISO90001
Model Number:	CNC38-4A2S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiatable
Packaging Details:	Standard export wooden case or pallet package
Delivery Time:	10 weeks
Payment Terms:	T/T
Supply Ability:	1 sets / 10 weeks or 10 sets 10 weeks

Contact Now

Detailed Product Description

Module No.:	CNC38-4A2S	Round Tube/iron Tube:	38x2.5mm
Round Tube/stainless Tube:	35x2.0mm

CNC38-4A2S

3D CNC automatic pipe bender

4 Axis and two stacks

Technical parameter

CNC38-4A2S 3DCNC automatic pipe bender parameter

Maxi bending capacity		Φ38×2.5 t
Max. mandrel length		3500mm Front position
Max. feeding stroke		2350mm
Feeding way		Directly or feeding repeatly
Max. bending radius		150mm
Max. bending degree		190°
Capacity bends for each tube		16 bends
Working speed	Bending	Max 230°/S
	Rotation	Max. 460°/ S
	Feeding	Max. 800mm/s
precision	Bending	±0.05°
	Rotation	±0.05°
	Feeding	±0.05mm
Data input mode		(XYZ) or(Y.B.C)
Rotation motor		MITSUBISHI
Bending motor		MITSUBISHI
Feeding motor		MITSUBISHI
Horizontal motor		MITSUBISHI
Hydraulic pump power		4KW
Machine weight		2250kg
Machine sizeL.W.H(mm)		4484mm×1150×1350

CNC38-4A2S CNC pipe bender purchasing part

part description	Brand
Control PLC	(MITSUBISHI)
software	Self-made
Low voltage pressure	Schneider / FRANCE
Feeding motor	MITSUBISHI
Feeding	MITSUBISHI
Rotation	MITSUBISHI
Rotation servo driver	MITSUBISHI
Oil pressure electric valve	YUKEN or 7 Ocean / Taiwan
The micro switch	OMRON
Proximity switch	OMRON
Oil pressure pump	YUKNE or Hytek
I/O INPUT OUTPUT PLATE	SELF MADE
Feeding Linear guide	HINWIN/TAIWAN
High speed Bearing	NSK
Seal elements	DINGJI / Taiwan
Bneding Reducer	Sanade or same level /Taiwan
Oil tube	Good Chinese band
Reducer (feeding & rotation)	Sanade or same level /Taiwan
