Industrial air compressor pipe bending machine for stainless pipe CNC90-6AMS

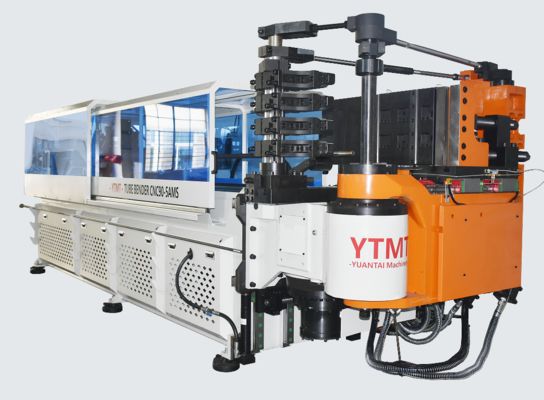

Large Image : Industrial air compressor pipe bending machine for stainless pipe CNC90-6AMS

Product Details:

Place of Origin:	CHINA
Brand Name:	YTMT
Certification:	ISO90001
Model Number:	CNC90-5AMS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiatable
Packaging Details:	Standard export wooden case or pallet package
Delivery Time:	8 weeks
Payment Terms:	T/T

Contact Now

Detailed Product Description

Metal:	Metal Pipe Bending	Round/iron Tube:	90x2.5mm
Round Tube/stainless Tube:	89x2.0mm

CNC90-5AMS

3D CNC automatic pipe bender

5 Axis and multi stacks

With rear booster

Technical parameter

CNC90-5AMS 3DCNC automatic pipe bender parameter

Maxi bending capacity		Φ90×2.5 t
Max. mandrel length		4000mm
Max. feeding stroke		3000mm
Feeding way		Directly or feeding repeatly
Max. bending radius		255mm
Max. bending degree		190°
Capacity bends for each tube		100弯 100 bends
Working speed	Bending	Max 65°/S
	Rotation	Max. 220°/ S
	Feeding	Max. 700mm/s
precision	Bending	±0.05°
	Rotation	±0.05°
	Feeding	±0.05mm
Data input mode		(XYZ) or(Y.B.C) or STP3D input


Machine weight		8250kg
Machine size L.W.H(mm)		6800×1900×1650

CNC90-5AMS CNC pipe bender purchasing part

part description	Brand
Control PLC	(MITSUBISHI)
15 Inches IPC control panel	Advantech / Taiwan
Low voltage pressure	Schneider / FRANCE
Feeding motor	MITSUBISHI
Feeding	MITSUBISHI
Rotation	MITSUBISHI
Rotation servo driver	MITSUBISHI
Oil pressure electric valve	7 Ocean or YUKEN
The micro switch	OMRON/日本
Proximity switch	OMRON/日本
Oil pressure pump	YUKEN OR HYTEK
I/O INPUT OUTPUT PLATE	SELF MADE
Linear guide and ball screw	HINWIN/TAIWAN
High speed Bearing	NSK
Seal elements	DINGJI / Taiwan
RV Reducer	MURATA / TAIWAN or same level
Oil tube	Lianhui/China
Reducer (feeding & rotation)	LIMING or Sainade / TAIWAN
