Straight ELS-F Series Outer Diameter Connection Coupling 316 Stainless Steel Body

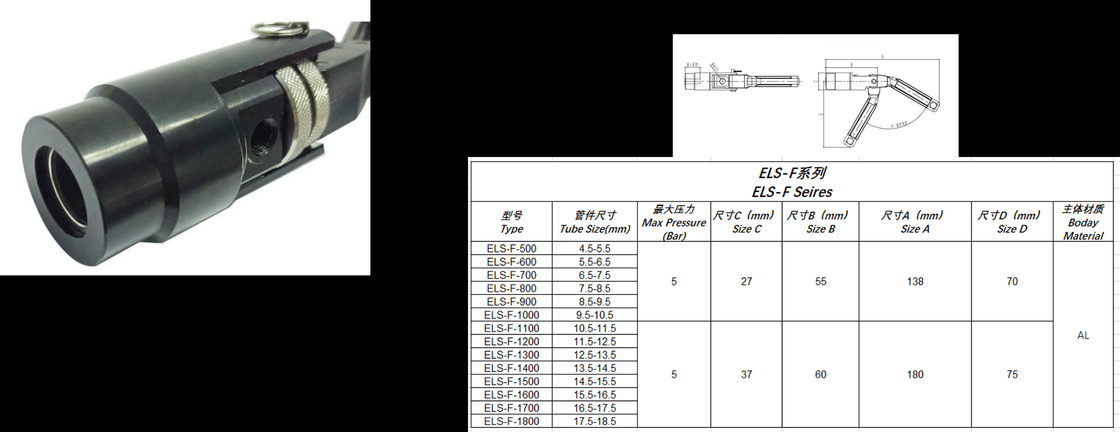

Large Image : Straight ELS-F Series Outer Diameter Connection Coupling 316 Stainless Steel Body

Product Details:

Place of Origin:	China
Brand Name:	ELS
Certification:	ISO
Model Number:	ELS-F

Contact Now

Detailed Product Description

Features:	Quick Connect/Disconnect	Leakage Rate:	1x10^-6 Sccs
Body Material:	316 Stainless Steel	Body Style:	Straight
Temperature Range:	-40°F To 250°F	Valve Type:	Ball Valve
End Connections:	Female/Female	Application:	Leak Testing
Pressure Rating:	Up To 10,000 Psi	Connection Type:	NPT
Maximum Working Pressure:	10,000 Psi	Seal Material:	Viton
Material:	Stainless Steel	Size:	1/4 Inch
Highlight:	Straight outer diameter connection coupling , 316 Stainless outer diameter connection coupling

Straight ELS-F Series Outer Diameter Connection Coupling 316 Stainless Steel Body 0

ELS-F Series
Suitable for sealing various outer diameter connection schemes of copper pipes,
steel pipes, and aluminum pipes, applied in the refrigeration and new energy industries, such as heat exchangers, pressure vessels, instruments, instruments, motor controller cooling plates, etc
Leak test quick relaese coupling
