| Pressure Accuracy: | ≤0.05mm | Working Stroke: | One Side Max:6mm |
|---|---|---|---|
| Precessing Tube Diameter: | Max:Φ30mm | Oil Tank Volumn: | 120L |
| Size: | 2200*1700*1400mm | Motor Power: | Hydraulic Motor4KW Main Moto |
| Highlight: | PLC Control Rotary Grooving Machine,Hydraulic Drive Rotary Grooving Machine,Auto Industry Rotary Grooving Machine |
||

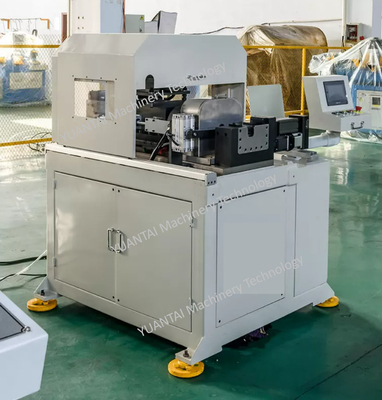

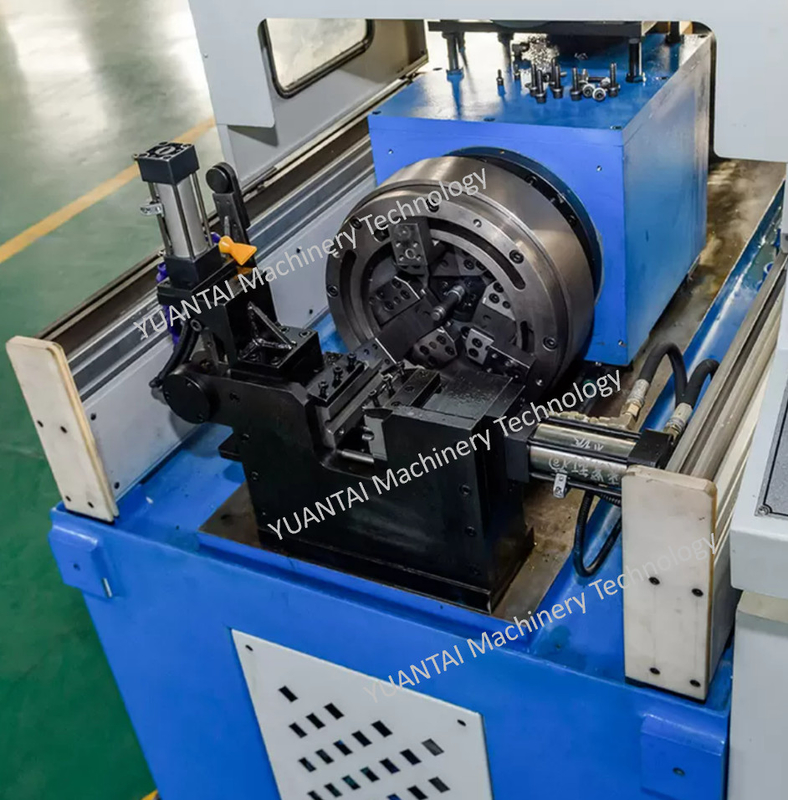

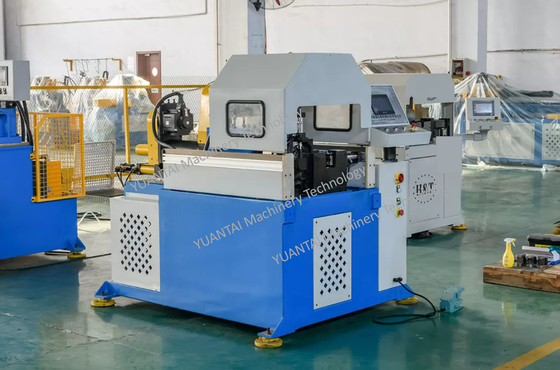

PLC Control Hydraulic Drive Rotary Roll Grooving Machine For Auto Industry and AC Industry
| Pressure Accuracy | ≤0.05mm |
| Working Stroke | One side Max:6mm |
| Precessing Tube Diameter | Max:Φ30mm |
| Working Speed | Primary Circulation≤10s |
| Working Pressure of Hydraulic System | ≤100Mpa |
| Oil Tank Volumn | 120L |
| Motor Power | Hydraulic Motor4KW Main Motor |
| Machine Size | 2200*1700*1400mm |
Applicaiton Range
Aluminum pipe single slot in automobile air conditioning industry,rolling depression of multiple-grooved sealing joint,steel tube,steel tube joint ;Control way:PlC control,hydraulic drive,Stepless speed regulation of inverter wide range with counter.
Intelligent Made
Gipfel makes intelligent science and technology into production and management in every field. Upgrade the production with the international advanced intelligent automation production line. Relying on (ERP) and other IT platform, standard management of company business process.
Research and Development
Over the years, we have been exploring applications in the industry in order to meet the needs of customers through constantly updated technology. Whether it is design idea, material selection or mold improvement, more humanized R & D investment will make our products more competitive and bring more market space to our customers.
