Industrial Durable 3D Automatic Coiling Machine High Rigidity Mechanical Structure

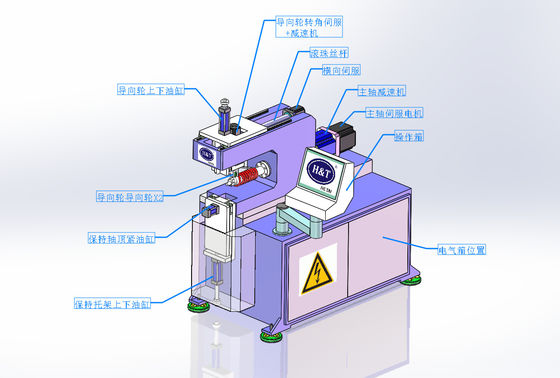

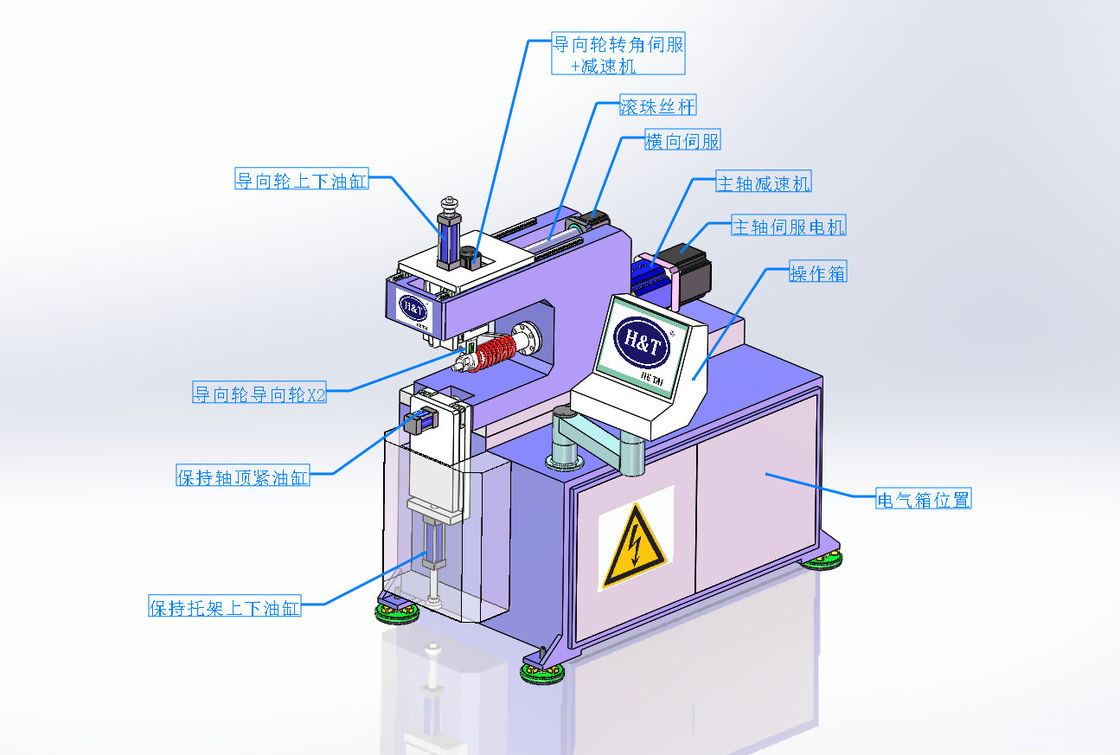

Large Image : Industrial Durable 3D Automatic Coiling Machine High Rigidity Mechanical Structure

Product Details:

Place of Origin:	China
Brand Name:	Y&T
Certification:	CE
Model Number:	3D Automatic Coiling Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiatable
Packaging Details:	Standard export wooden case or pallet package

Contact Now

Detailed Product Description

Module No.:	3D Automatic Coiling Machine	Automation:	Automatic
Oil Pump:	3KW	Total Power:	14KW
Coiling Length:	500mm	Coling Maximun Speed:	25 Circles/min
Highlight:	auto coiler machine , tube coiling machine

XG30 spiral grooving machine

3D CNC automatic coling machine,It conforms to the high rigidity mechanical structure design and precision techonology level of principle of dynamic mechanics,under both structural strength,the simple design of bending hand and bending machine head provides the maximun bending space,making the interference range of machine minimum.Equipped with automatic procedure operation system, ensuring that all kinds of different steel tube bending work can easily meet the requirements of mass production and high precision

Main parameters
Total	14KW
Machine processing range	Under ø20mm*1.2
Coiling diameter	Under ø150
Coiling length	500mm
Coling maximun speed	25 circles/min
TAKT TIME	Under each piece/min

Machine size	Length 900×width1700×height 1700mm
(take 20KD400061 for granted)Hydraulic system Working pressure	45kg/c㎡

Power of Spindle	5kw

oil pump	3kw

Features:

Mandrel can be quickly replaced for coil work

With rotating coiling axis, guide wheel moving axis,viriable pitch axis,ptriaxial electrical servo drive rotating coiling axis Mitsubishi servomotor and driver guide wheel moving axis Mitsubishi servomotor and driver viriable pitch axis Mitsubishi servomotor and driver

Through dynamic mechanical analysis of coil design, the coil process is integrated with high rigidity, firm and stable
All signal wires and electrical assemblies are modular and numbered for easy replacement and maintenance

FAQ

1. How to choose the chamfering machine?

You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- Bending radius (CLR)
- The pipe material
- The drawings if possible

2. Do you provide any training to make sure our user can operate the machine very well?

1) We will provide detailed video and instruction book for this machine;
2) We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!

3. How long warranty can you provide?

Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!

4. What kind of solution you can offer to make sure your pipe bending machine can do our job?

1) We will help you confirm the model of our machine according to your offered pipe information.
2) Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3) You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
